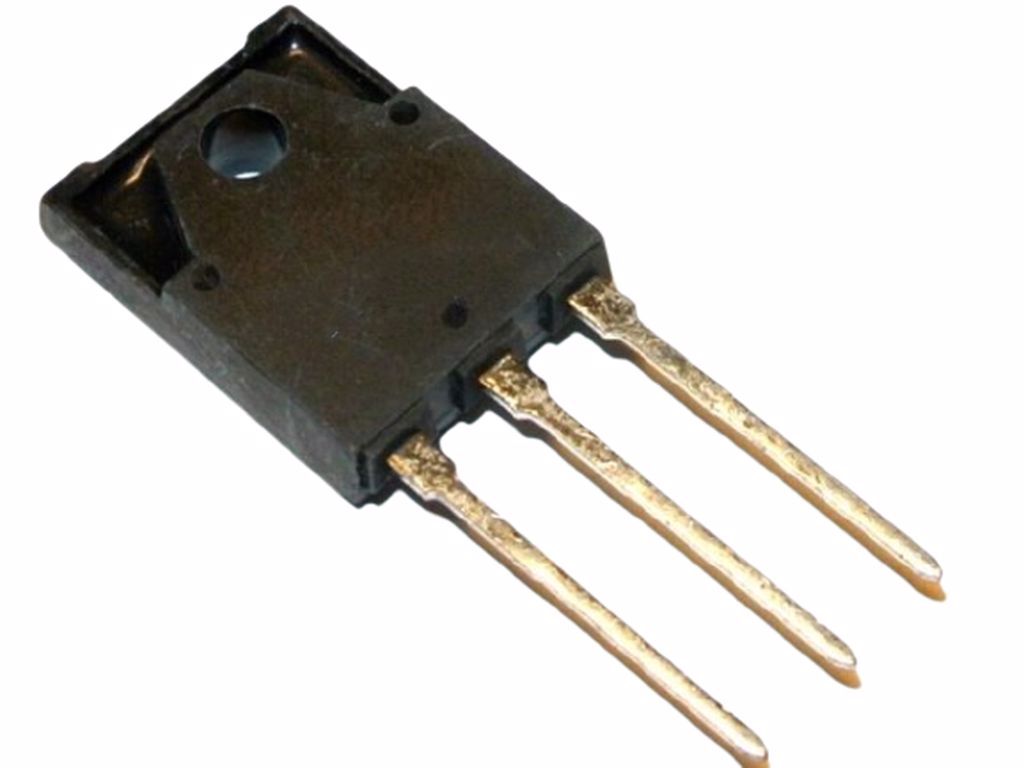

2SK2847 TO-3PNIS 900V 8A N-CHANNEL MOSFET TRANSISTOR
2SK2847
Type Designator: 2SK2847
Marking Code: K2847
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 85 W
Maximum Drain-Source Voltage |Vds|: 900 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 4 V
Maximum Drain Current |Id|: 8 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 58 nC
Rise Time (tr): 25 nS
Drain-Source Capacitance (Cd): 190 pF
Maximum Drain-Source On-State Resistance (Rds): 1.4 Ohm
Package: TO3P
Ürün Bilgisi
2SK2847
Type Designator: 2SK2847
Marking Code: K2847
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 85 W
Maximum Drain-Source Voltage |Vds|: 900 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 4 V
Maximum Drain Current |Id|: 8 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 58 nC
Rise Time (tr): 25 nS
Drain-Source Capacitance (Cd): 190 pF
Maximum Drain-Source On-State Resistance (Rds): 1.4 Ohm
Package: TO3P
