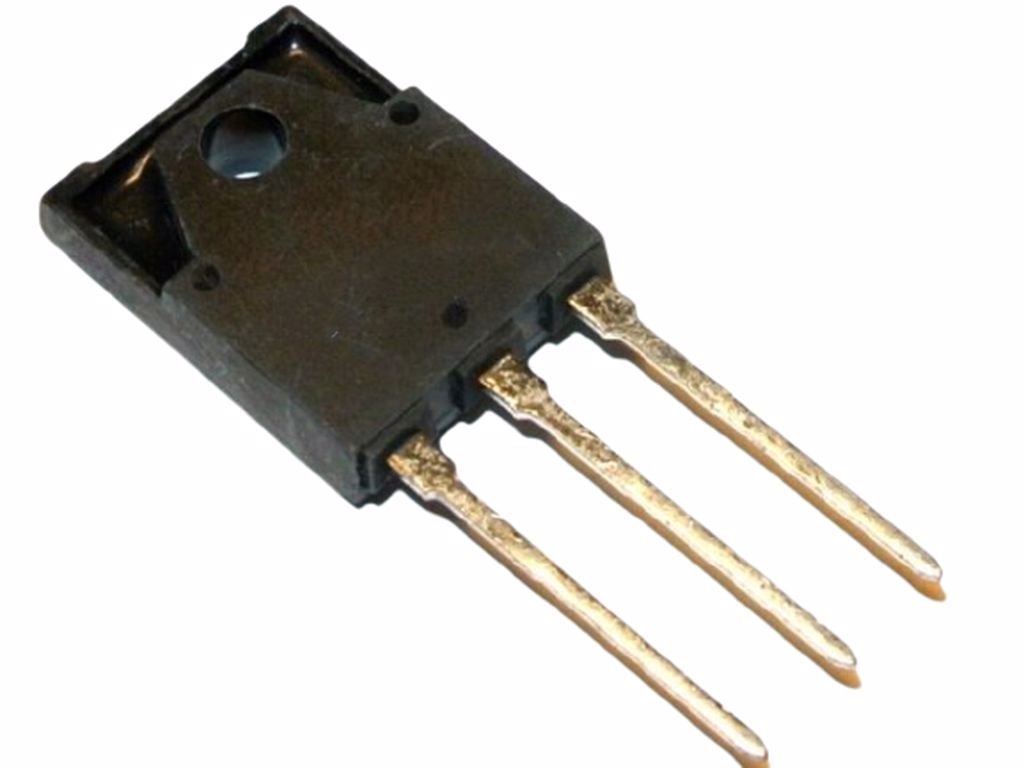

2SK2917 TO-3P 18A 500V N-CHANNEL MOSFET TRANSISTOR
2SK2917
Type Designator: 2SK2917
Marking Code: K2917
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 90 W
Maximum Drain-Source Voltage |Vds|: 500 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 4 V
Maximum Drain Current |Id|: 18 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 80 nC
Rise Time (tr): 30 nS
Drain-Source Capacitance (Cd): 1165 pF
Maximum Drain-Source On-State Resistance (Rds): 0.27 Ohm
Package: TO3P
Ürün Bilgisi
2SK2917
Type Designator: 2SK2917
Marking Code: K2917
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 90 W
Maximum Drain-Source Voltage |Vds|: 500 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 4 V
Maximum Drain Current |Id|: 18 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 80 nC
Rise Time (tr): 30 nS
Drain-Source Capacitance (Cd): 1165 pF
Maximum Drain-Source On-State Resistance (Rds): 0.27 Ohm
Package: TO3P
