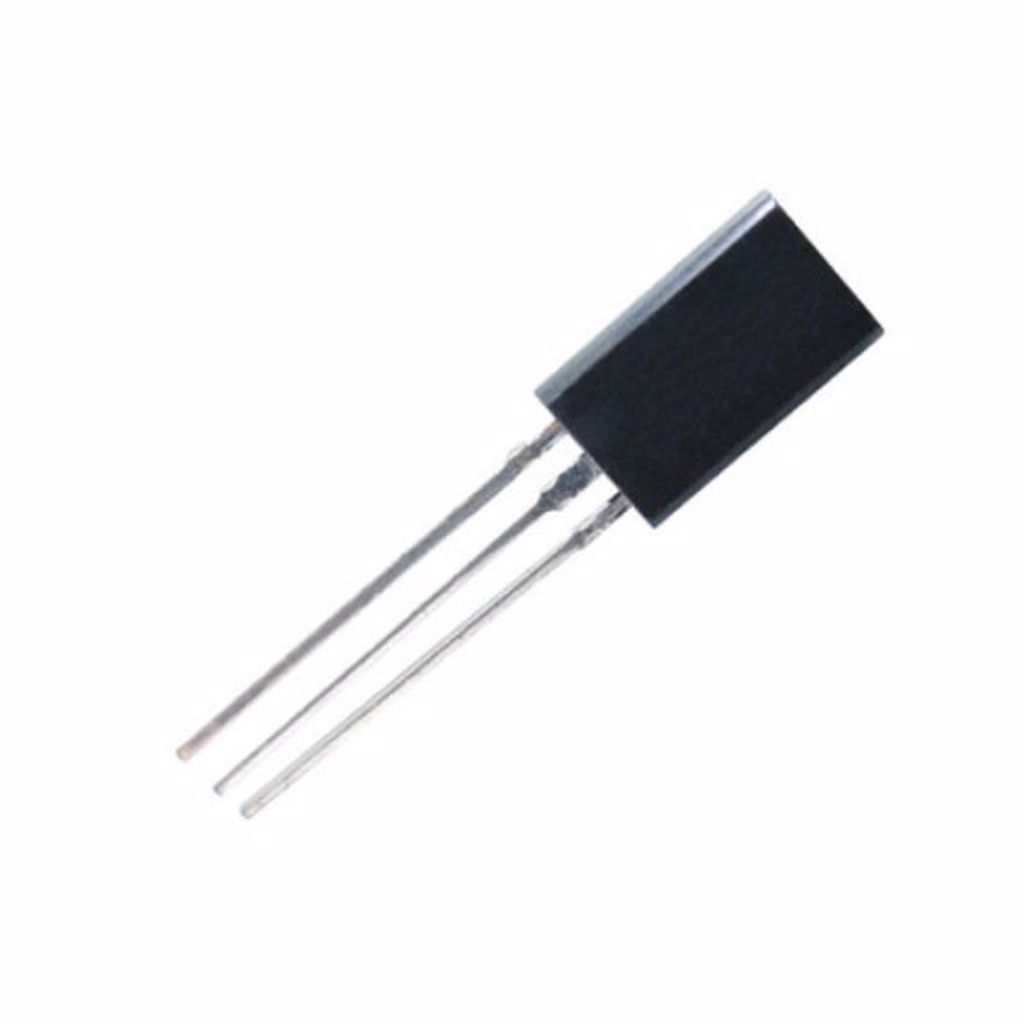

2SK2962 TO-92L 100V 1A 0.9W N-CHANNEL MOSFET TRANSISTOR
2SK2962
Type Designator: 2SK2962
Marking Code: K2962
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 0.9 W
Maximum Drain-Source Voltage |Vds|: 100 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 2 V
Maximum Drain Current |Id|: 1 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 6.3 nC
Rise Time (tr): 8 nS
Drain-Source Capacitance (Cd): 45 pF
Maximum Drain-Source On-State Resistance (Rds): 0.7 Ohm
Package: TO92MOD
