2SK3065T100 - (KE M) SOT-89 60V 2A 0.5W N-CHANNEL MOSFET TRANSISTOR
2SK3065T100 MOSFET
Type Designator: 2SK3065T100
Marking Code: KE
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 0.5 W
Maximum Drain-Source Voltage |Vds|: 60 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 1.5 V
Maximum Drain Current |Id|: 2 A
Maximum Junction Temperature (Tj): 150 °C
Rise Time (tr): 50 nS
Drain-Source Capacitance (Cd): 85 pF
Maximum Drain-Source On-State Resistance (Rds): 0.32 Ohm

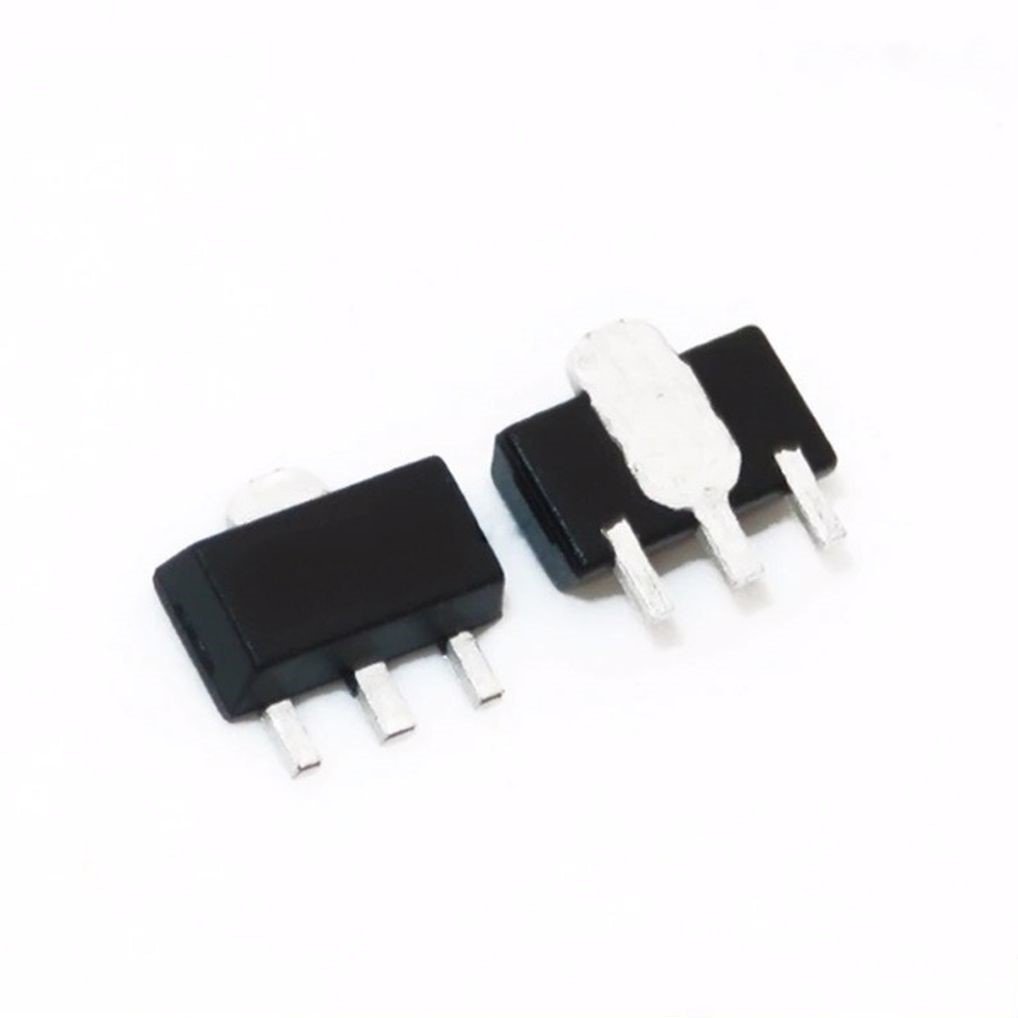

Package: SOT89
Ürün Bilgisi
2SK3065T100 MOSFET
Type Designator: 2SK3065T100
Marking Code: KE
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 0.5 W
Maximum Drain-Source Voltage |Vds|: 60 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 1.5 V
Maximum Drain Current |Id|: 2 A
Maximum Junction Temperature (Tj): 150 °C
Rise Time (tr): 50 nS
Drain-Source Capacitance (Cd): 85 pF
Maximum Drain-Source On-State Resistance (Rds): 0.32 Ohm
Package: SOT89
