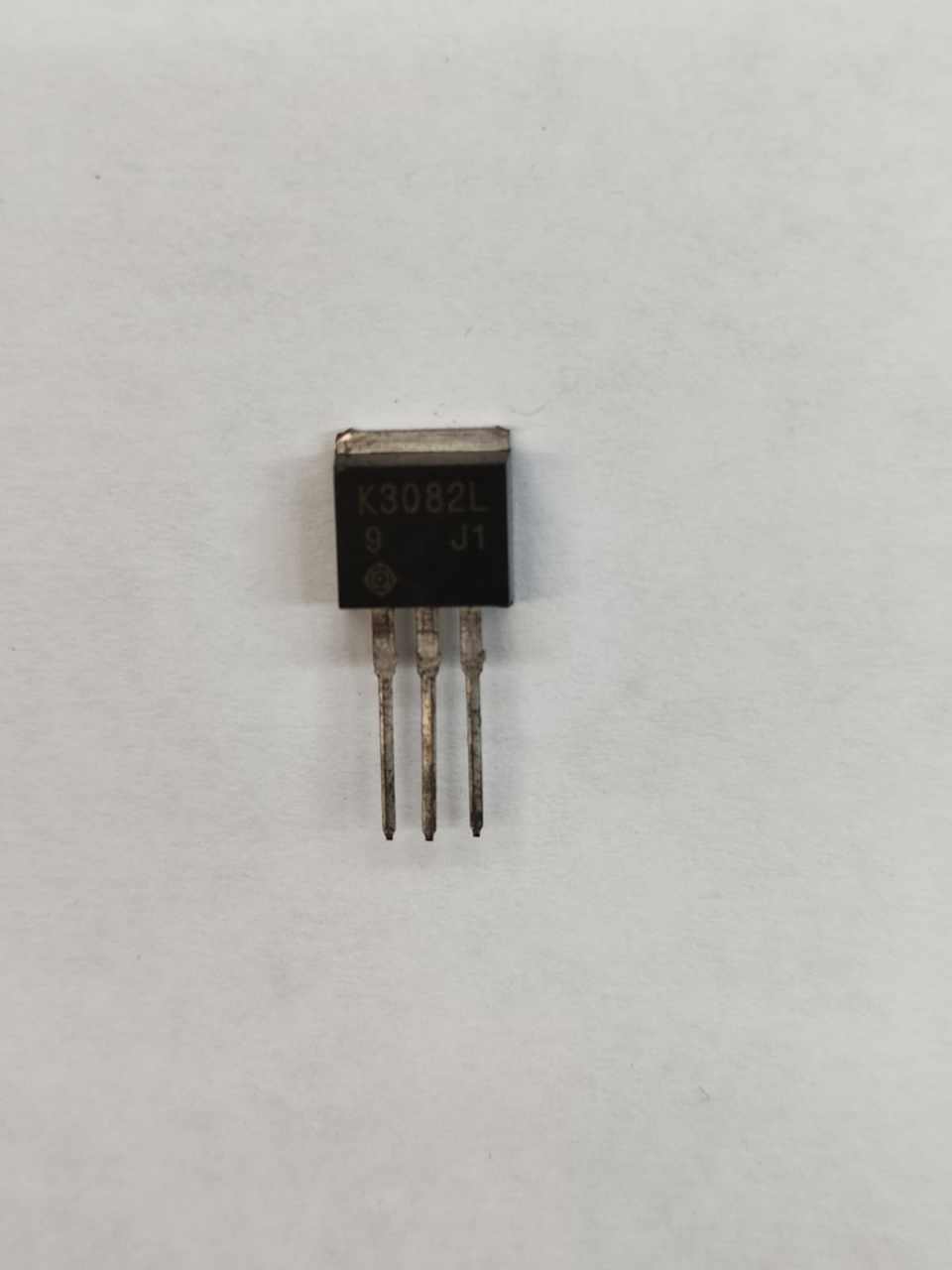

2SK3082L LDPAK 60V 10A 30W N-CHANNEL MOSFET TRANSISTOR
2SK3082L
Type Designator: 2SK3082L
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 30 W
Maximum Drain-Source Voltage |Vds|: 60 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Drain Current |Id|: 10 A
Maximum Junction Temperature (Tj): 150 °C
Rise Time (tr): 55 nS
Drain-Source Capacitance (Cd): 190 pF
Maximum Drain-Source On-State Resistance (Rds): 0.075 Ohm
Package: LDPAK
Ürün Bilgisi
2SK3082L
Type Designator: 2SK3082L
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 30 W
Maximum Drain-Source Voltage |Vds|: 60 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Drain Current |Id|: 10 A
Maximum Junction Temperature (Tj): 150 °C
Rise Time (tr): 55 nS
Drain-Source Capacitance (Cd): 190 pF
Maximum Drain-Source On-State Resistance (Rds): 0.075 Ohm
Package: LDPAK
