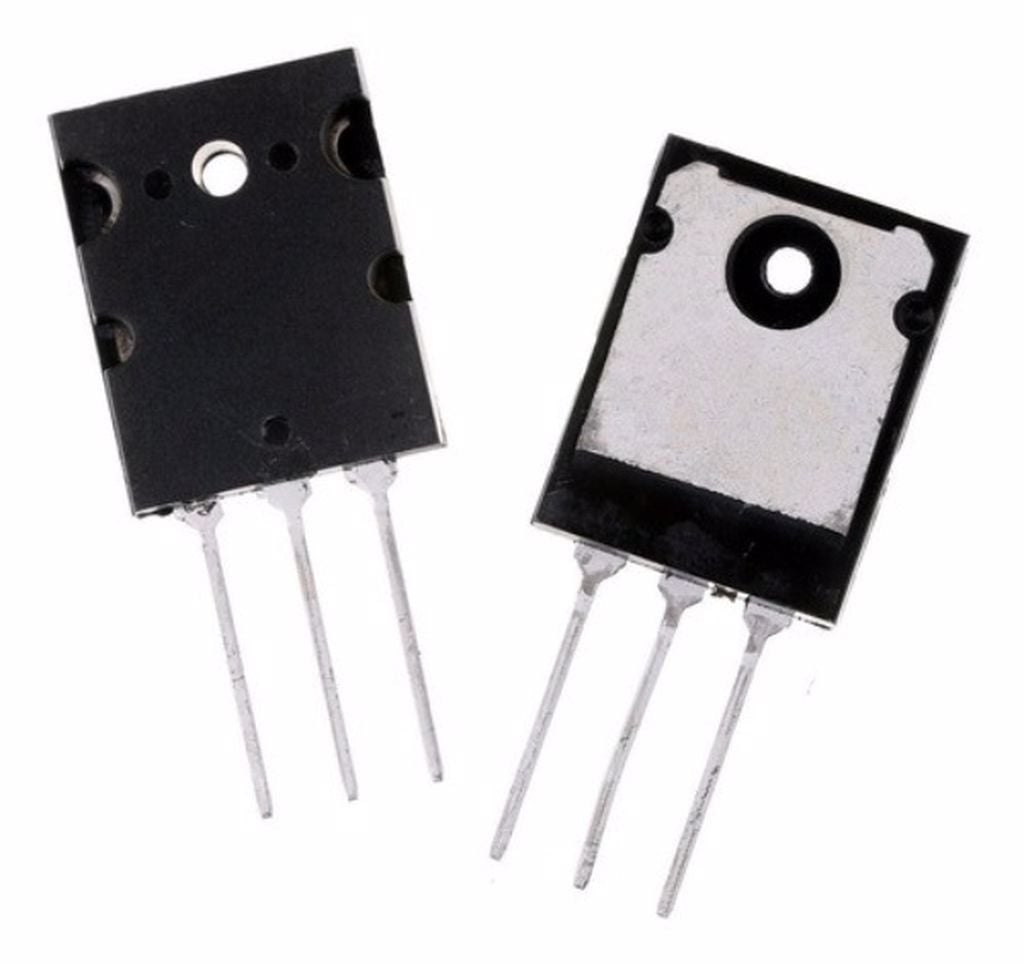

2SK3131 TO-3PL 50A 500V 250W N-CHANNEL MOSFET TRANSISTOR
2SK3131
Type Designator: 2SK3131
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 250 W
Maximum Drain-Source Voltage |Vds|: 500 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Drain Current |Id|: 50 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 280 nC
Rise Time (tr): 105 nS
Drain-Source Capacitance (Cd): 4200 pF
Maximum Drain-Source On-State Resistance (Rds): 0.085 Ohm
Package: 2-21F1B
