2SK3365 TO-252 30V 30A 36W N-CHANNEL MOSFET TRANSISTOR
2SK3365
Type Designator: 2SK3365-Z
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 36 W
Maximum Drain-Source Voltage |Vds|: 30 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Drain Current |Id|: 30 A
Maximum Junction Temperature (Tj): 150 °C
Rise Time (tr): 500 nS
Drain-Source Capacitance (Cd): 405 pF
Maximum Drain-Source On-State Resistance (Rds): 0.014 Ohm

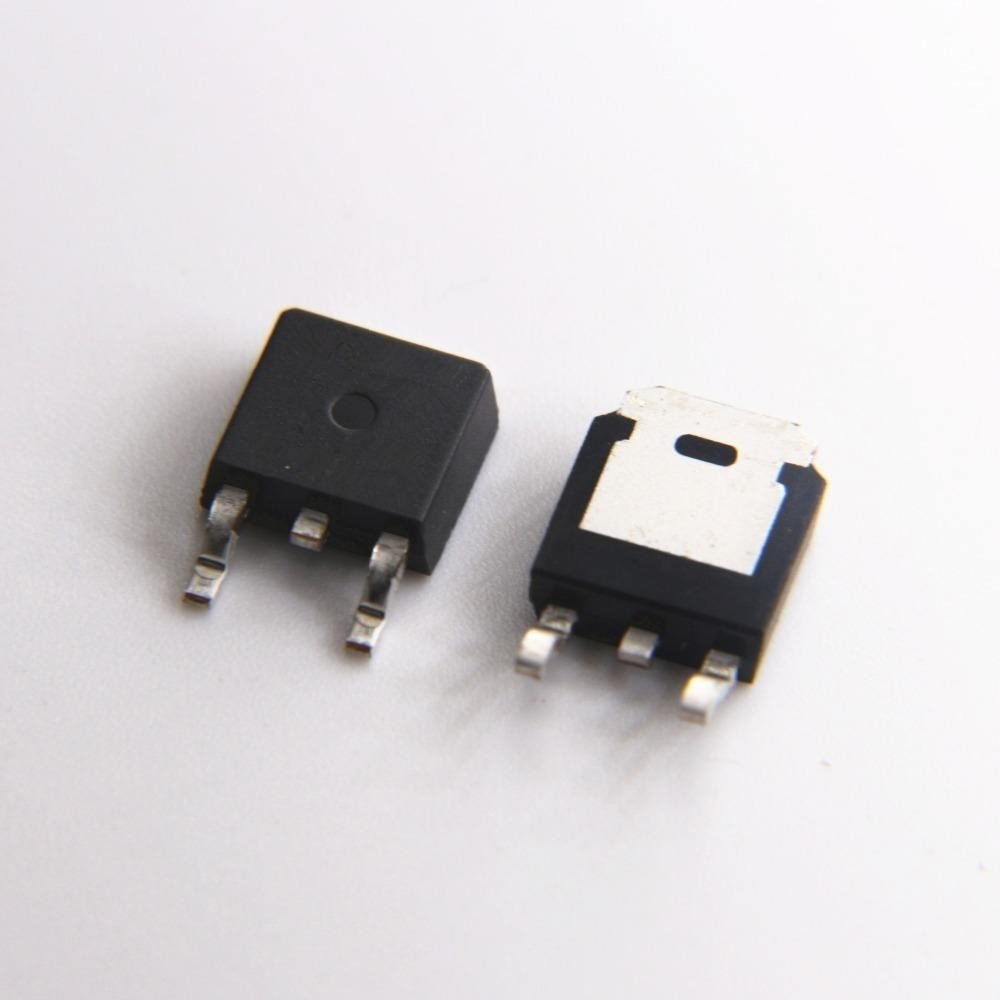

Package: TO252
Ürün Bilgisi
2SK3365
Type Designator: 2SK3365-Z
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 36 W
Maximum Drain-Source Voltage |Vds|: 30 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Drain Current |Id|: 30 A
Maximum Junction Temperature (Tj): 150 °C
Rise Time (tr): 500 nS
Drain-Source Capacitance (Cd): 405 pF
Maximum Drain-Source On-State Resistance (Rds): 0.014 Ohm
Package: TO252
