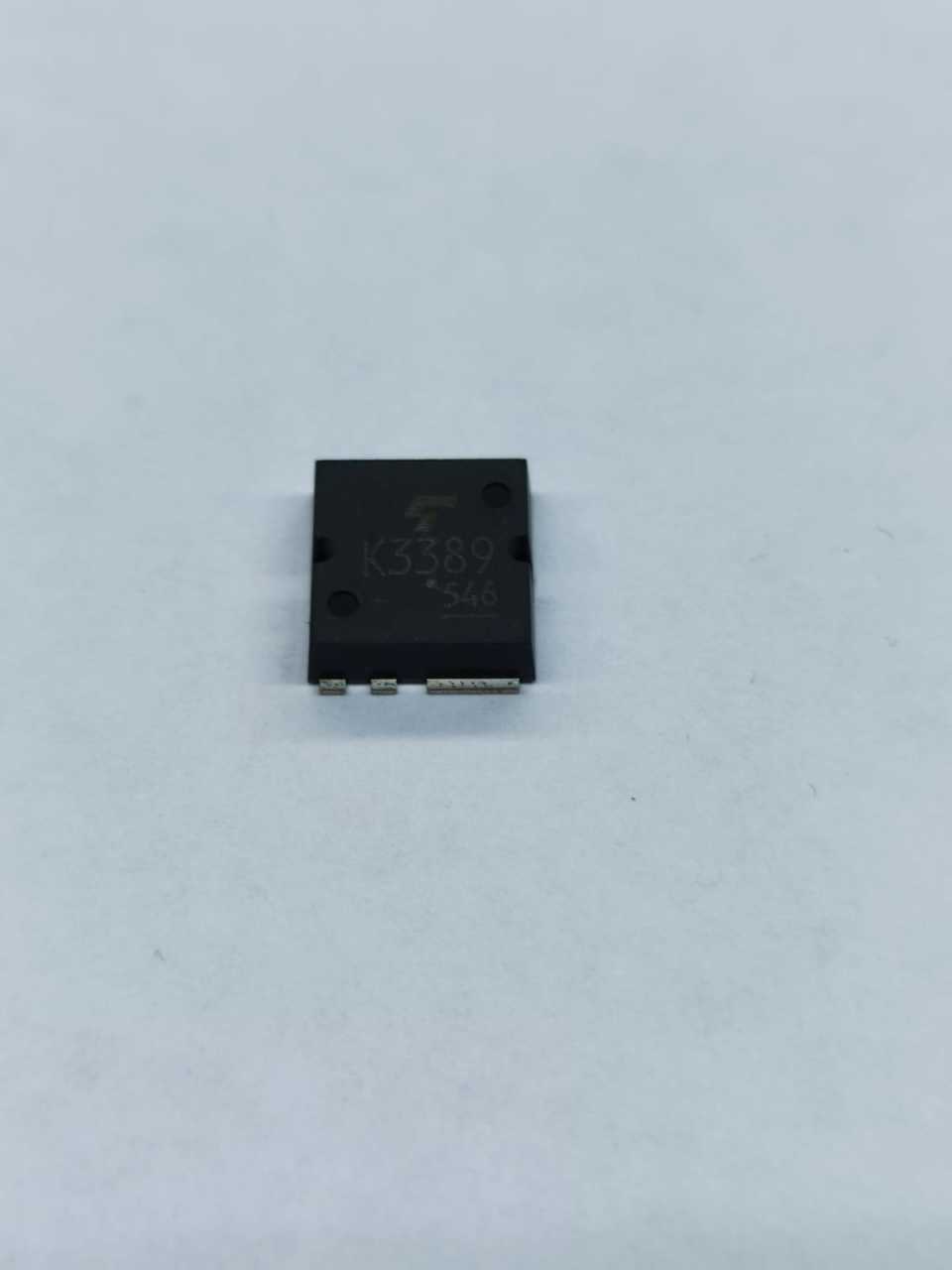

2SK3389 SC-97 30V 75A 125W N-CHANNEL MOSFET TRANSISTOR
2SK3389
Type Designator: 2SK3389
Marking Code: K3389
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 125 W
Maximum Drain-Source Voltage |Vds|: 30 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 4 V
Maximum Drain Current |Id|: 75 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 62 nC
Rise Time (tr): 10 nS
Drain-Source Capacitance (Cd): 1870 pF
Maximum Drain-Source On-State Resistance (Rds): 0.005 Ohm
Package: TFP SC97
