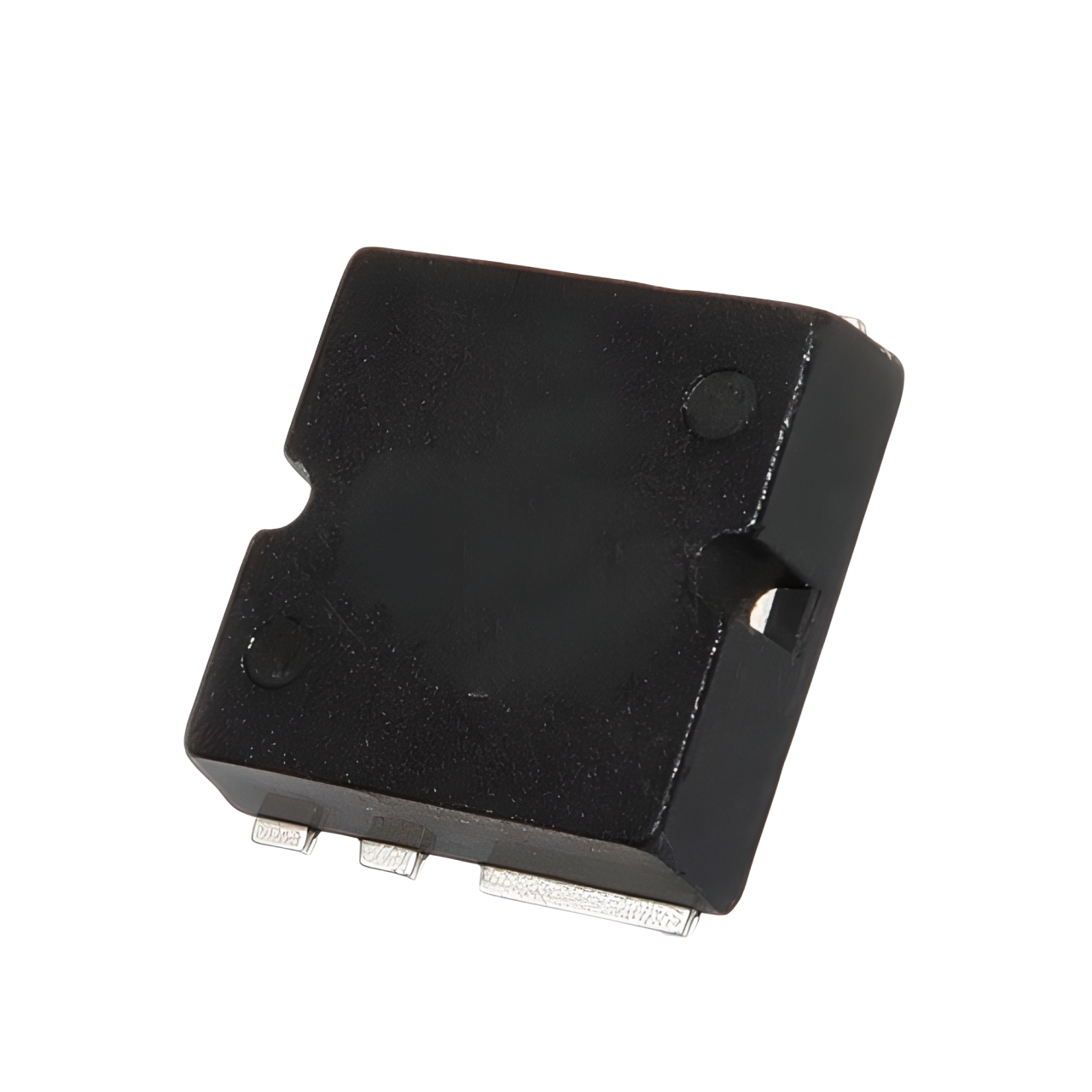

2SK3397 2-9F1C 70A 30V N-CHANNEL MOSFET TRANSISTOR
2SK3397
Type Designator: 2SK3397
Marking Code: K3397
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 125 W
Maximum Drain-Source Voltage |Vds|: 30 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 3 V
Maximum Drain Current |Id|: 70 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 110 nC
Rise Time (tr): 8 nS
Drain-Source Capacitance (Cd): 1000 pF
Maximum Drain-Source On-State Resistance (Rds): 0.006 Ohm
Package: TFP SC97
Ürün Bilgisi
2SK3397
Type Designator: 2SK3397
Marking Code: K3397
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 125 W
Maximum Drain-Source Voltage |Vds|: 30 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 3 V
Maximum Drain Current |Id|: 70 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 110 nC
Rise Time (tr): 8 nS
Drain-Source Capacitance (Cd): 1000 pF
Maximum Drain-Source On-State Resistance (Rds): 0.006 Ohm
Package: TFP SC97
