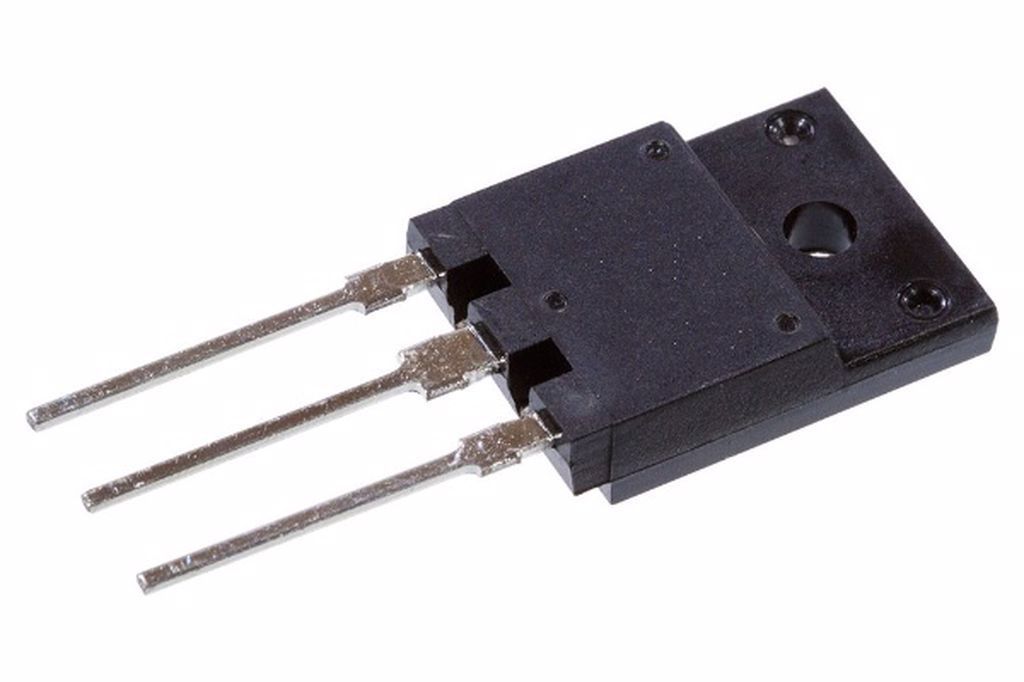

2SK3528 TO-3PF 600V 17A 120W N-CHANNEL MOSFET TRANSISTOR
2SK3528
Type Designator: 2SK3528
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 120 W
Maximum Drain-Source Voltage |Vds|: 600 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Drain Current |Id|: 17 A
Maximum Junction Temperature (Tj): 150 °C
Rise Time (tr): 37 nS
Drain-Source Capacitance (Cd): 290 pF
Maximum Drain-Source On-State Resistance (Rds): 0.29 Ohm
Package: TO3PF
Ürün Bilgisi
2SK3528
Type Designator: 2SK3528
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 120 W
Maximum Drain-Source Voltage |Vds|: 600 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Drain Current |Id|: 17 A
Maximum Junction Temperature (Tj): 150 °C
Rise Time (tr): 37 nS
Drain-Source Capacitance (Cd): 290 pF
Maximum Drain-Source On-State Resistance (Rds): 0.29 Ohm
Package: TO3PF
