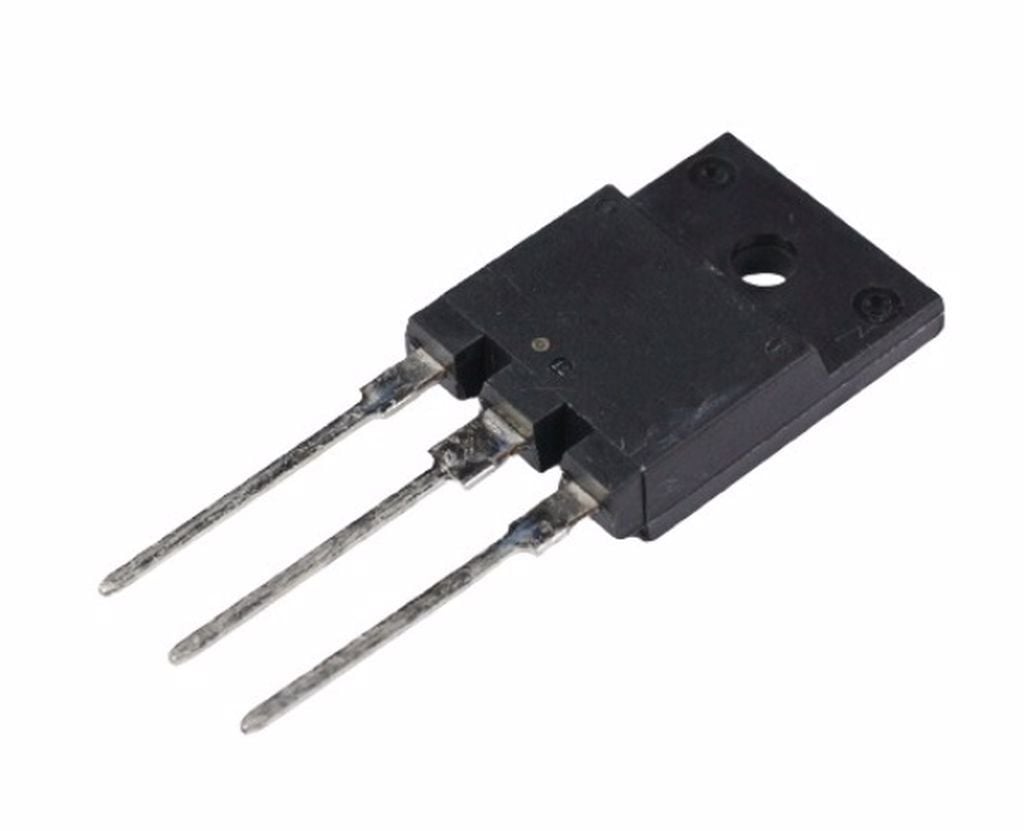

2SK3747 TO-3PML 2A 1500V 50W N-CHANNEL MOSFET TRANSISTOR
2SK3747
Type Designator: 2SK3747
Marking Code: K3747
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 50 W
Maximum Drain-Source Voltage |Vds|: 1500 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Minimum Gate-to-Source Cutoff Voltage |Vgs(off)|: 2.5 V
Maximum Drain Current |Id|: 2 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 37.5 nC
Rise Time (tr): 37 nS
Drain-Source Capacitance (Cd): 70 pF
Maximum Drain-Source On-State Resistance (Rds): 13 Ohm
Package: TO3PML
