2SK3748

Type Designator: 2SK3748-1E

Marking Code: K3748

Type of Transistor: MOSFET

Type of Control Channel: N -Channel

Maximum Power Dissipation (Pd): 65 W

Maximum Drain-Source Voltage |Vds|: 1500 V

Maximum Gate-Source Voltage |Vgs|: 20 V

Maximum Drain Current |Id|: 4 A

Maximum Junction Temperature (Tj): 150 °C

Total Gate Charge (Qg): 80 nC

Rise Time (tr): 75 nS

Drain-Source Capacitance (Cd): 140 pF

Maximum Drain-Source On-State Resistance (Rds): 7 Ohm

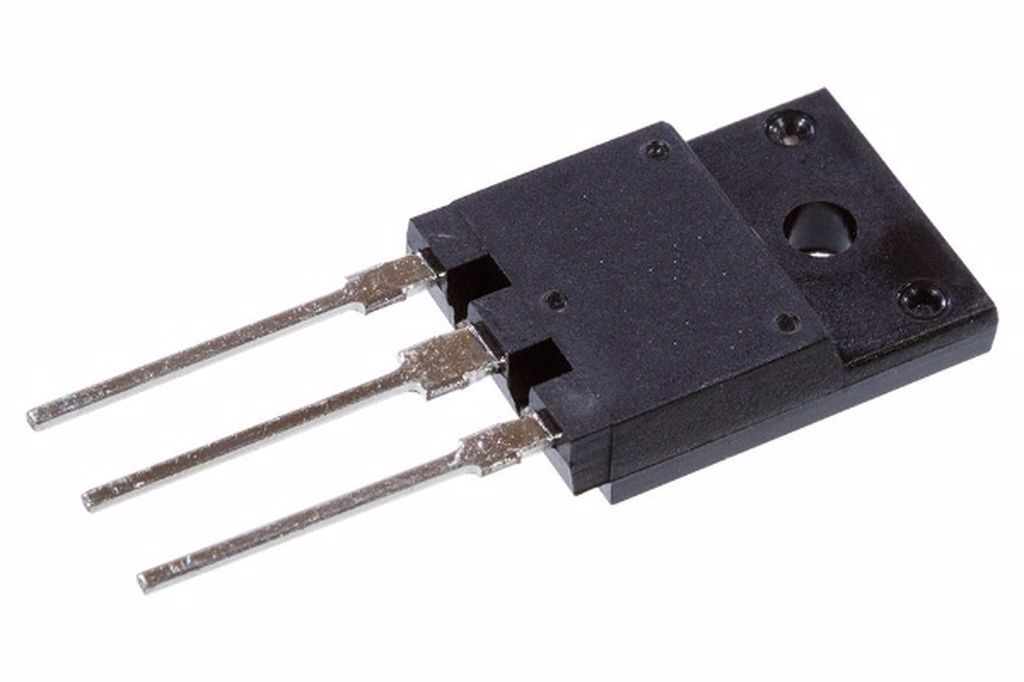

Package: TO3PF
