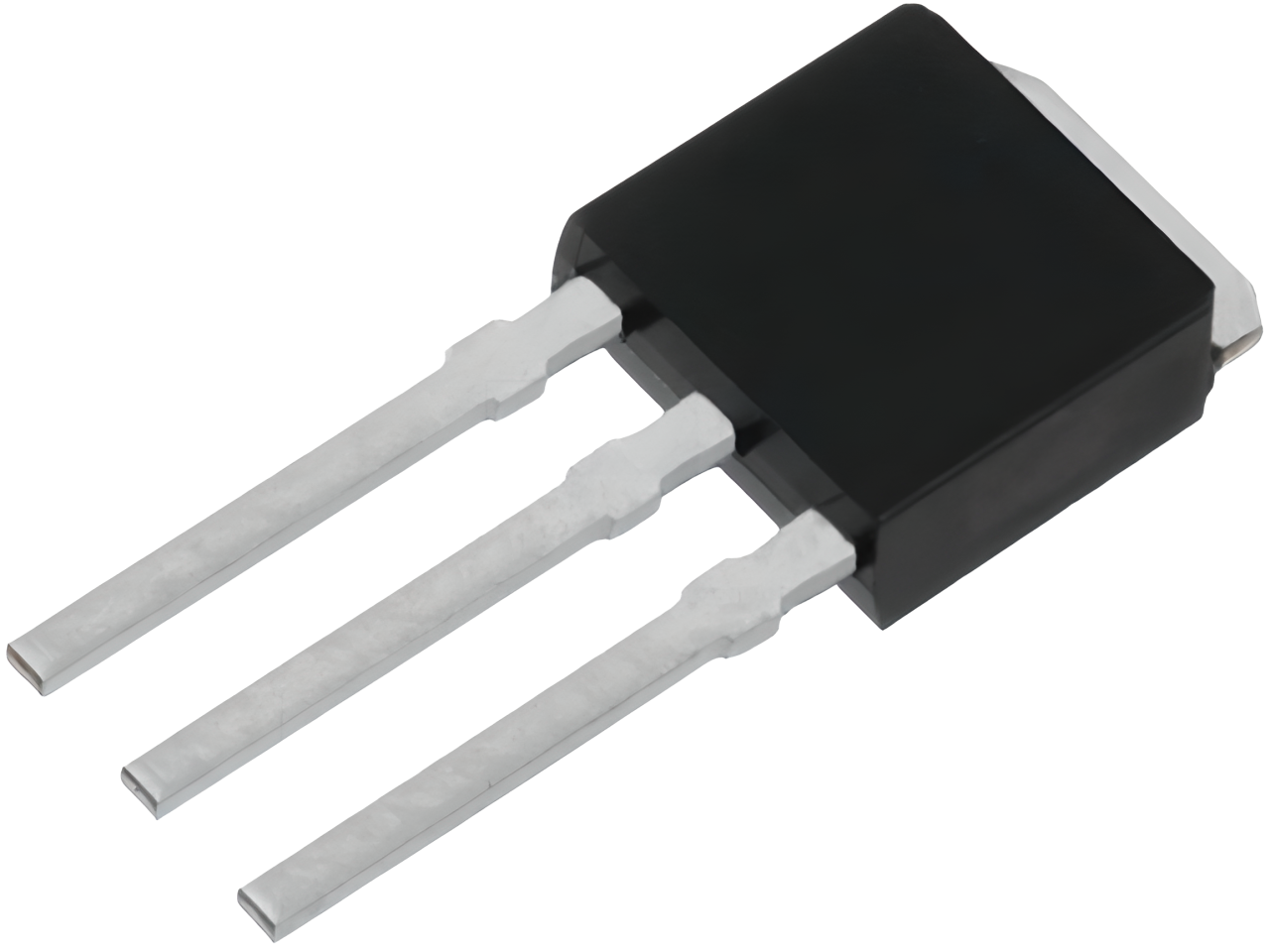

2SK4017 TO-251 5A 60V 20W 0.1Ω N-CHANNEL MOSFET
2SK4017 MOSFET
Type Designator: 2SK4017
Marking Code: K4017
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 20 W
Maximum Drain-Source Voltage |Vds|: 60 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 2.5 V
Maximum Drain Current |Id|: 5 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 15 nC
Rise Time (tr): 10 nS
Drain-Source Capacitance (Cd): 95 pF
Maximum Drain-Source On-State Resistance (Rds): 0.1 Ohm
Package: NEW PWMOLD2
Ürün Bilgisi
2SK4017 MOSFET
Type Designator: 2SK4017
Marking Code: K4017
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 20 W
Maximum Drain-Source Voltage |Vds|: 60 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 2.5 V
Maximum Drain Current |Id|: 5 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 15 nC
Rise Time (tr): 10 nS
Drain-Source Capacitance (Cd): 95 pF
Maximum Drain-Source On-State Resistance (Rds): 0.1 Ohm
Package: NEW PWMOLD2
