2SK583 TO-92 50V 0.2A 0.6W N-CHANNEL JFET MOSFET TRANSISTOR
2SK583
Type Designator: 2SK583
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 0.6 W
Maximum Drain-Source Voltage |Vds|: 50 V
Maximum Gate-Source Voltage |Vgs|: 12 V
Maximum Drain Current |Id|: 0.2 A
Maximum Junction Temperature (Tj): 125 °C
Drain-Source Capacitance (Cd): 6 pF
Maximum Drain-Source On-State Resistance (Rds): 20 Ohm

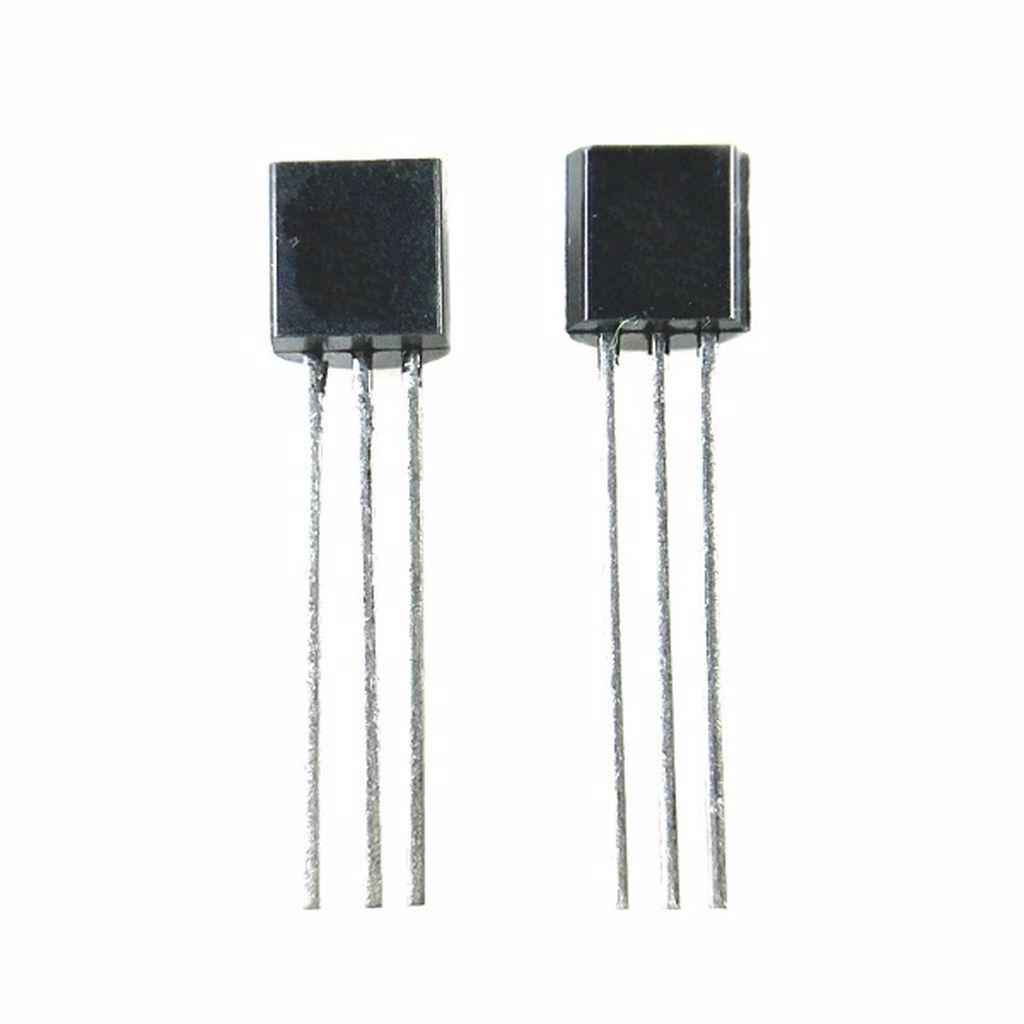

Package: TO92 SC43
Ürün Bilgisi
2SK583
Type Designator: 2SK583
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 0.6 W
Maximum Drain-Source Voltage |Vds|: 50 V
Maximum Gate-Source Voltage |Vgs|: 12 V
Maximum Drain Current |Id|: 0.2 A
Maximum Junction Temperature (Tj): 125 °C
Drain-Source Capacitance (Cd): 6 pF
Maximum Drain-Source On-State Resistance (Rds): 20 Ohm
Package: TO92 SC43
