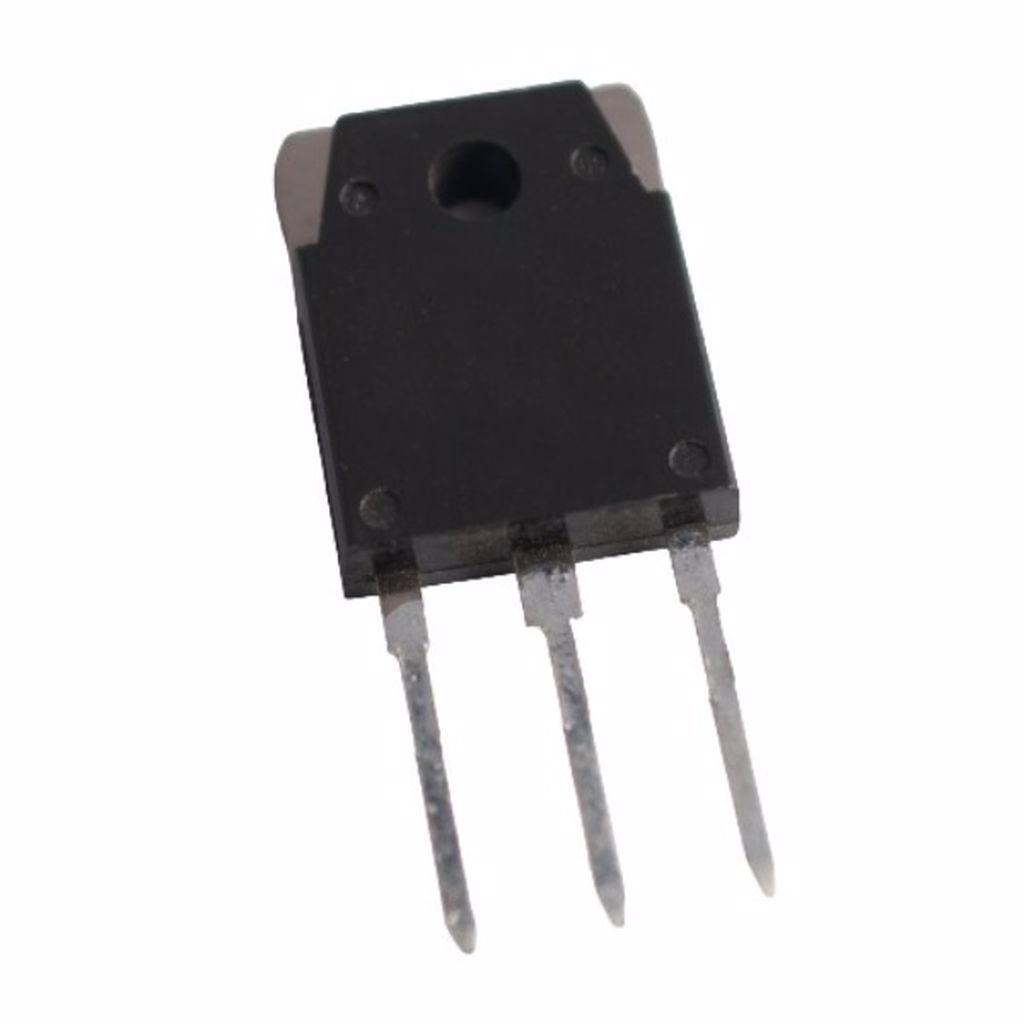

2SK901 TO-3P 250V 20A 125W N-CHANNEL MOSFET TRANSISTOR
2SK901
Type Designator: 2SK901
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 125 W
Maximum Drain-Source Voltage |Vds|: 250 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 4 V
Maximum Drain Current |Id|: 20 A
Maximum Junction Temperature (Tj): 150 °C
Turn-on Time (ton): 100 nS
Drain-Source Capacitance (Cd): 350 pF
Maximum Drain-Source On-State Resistance (Rds): 0.15 Ohm
Package: TO3P
Ürün Bilgisi
2SK901
Type Designator: 2SK901
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 125 W
Maximum Drain-Source Voltage |Vds|: 250 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 4 V
Maximum Drain Current |Id|: 20 A
Maximum Junction Temperature (Tj): 150 °C
Turn-on Time (ton): 100 nS
Drain-Source Capacitance (Cd): 350 pF
Maximum Drain-Source On-State Resistance (Rds): 0.15 Ohm
Package: TO3P
