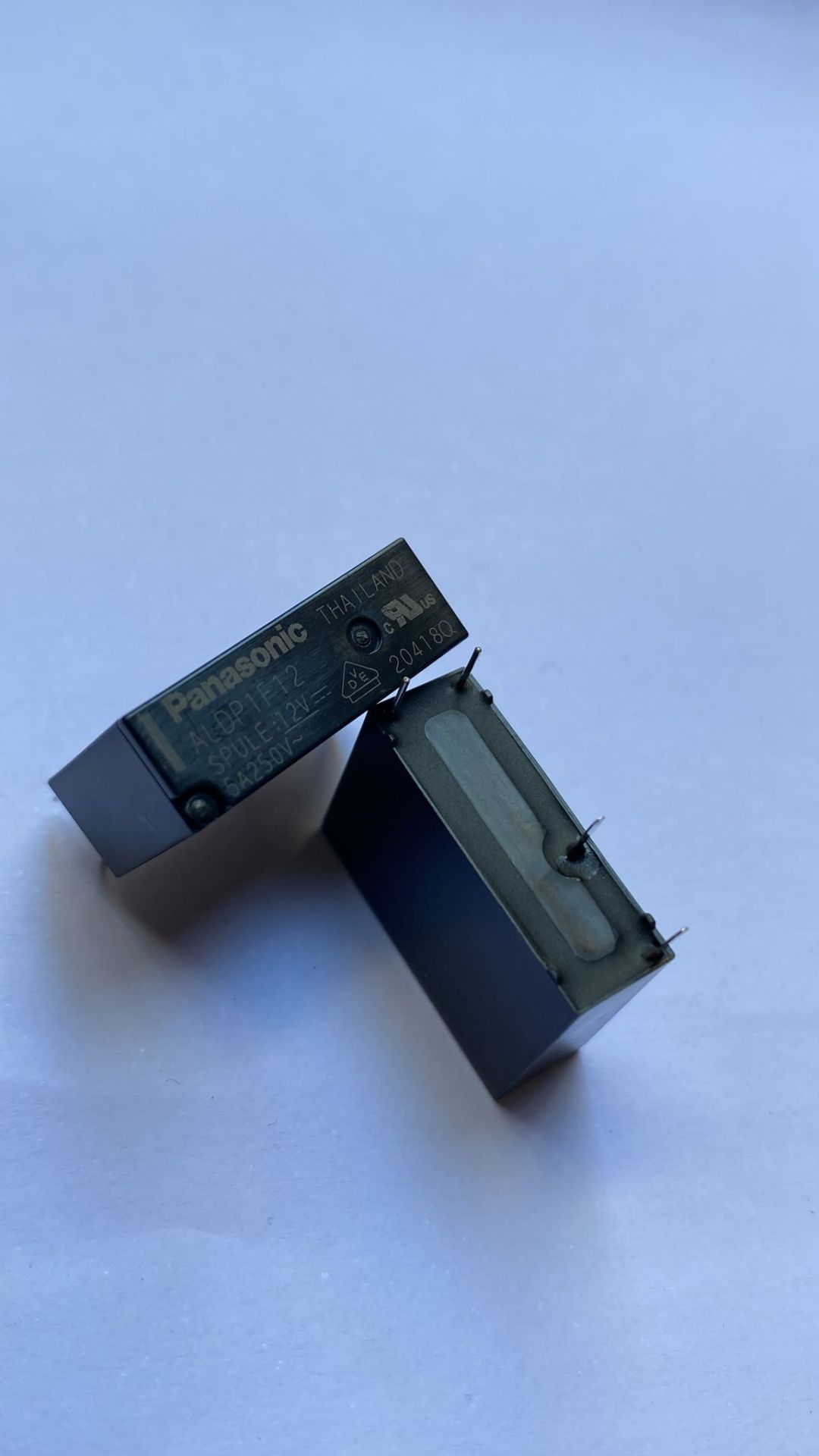

ALDP1F12W 5A 12V 1a 4 PİN KOMBİ RÖLESİ
₺24,32 + KDV
Kategori
Stok Kodu
ALDP1F12W 12V 5A 4 Pin Kombi Rölesi
Fiyat
0,55 USD + KDV
*2,71 TL den başlayan taksitlerle!
ALDP1F12W 5A 12V 1a 4 PİN KOMBİ RÖLESİ
| Item | Product specifications |
|---|---|
| Contact arrangement | 1 Form A |
| Max. switching current | 5 A (AC), 3 A (DC) |
| Max. switching voltage | 277 V AC, 30 V DC |
| Operating function | Single side stable |
| Terminal shape | PC board terminal |
| Min. switching load (reference value) | 100 mA 5 V DC |
| Dielectric strength (initial) : Between contact and coil | 4,000 Vrms for 1 min (detection current: 10 mA) |
| Dielectric strength (initial) : Between open contacts | 750 Vrms for 1 min (detection current: 10 mA) |
| Shock resistance (Destructive) | 1,000 m/s2 (half-sine shock pulse: 6 ms) |
| Shock resistance (Functional) | 300 m/s2 (half-sine shock pulse: 11 ms, detection time: 10 μs) |
Bu ürüne ilk yorumu siz yapın!
Ürün hakkında henüz soru sorulmamış.
Ürün Bilgisi
ALDP1F12W 5A 12V 1a 4 PİN KOMBİ RÖLESİ
| Item | Product specifications |
|---|---|
| Contact arrangement | 1 Form A |
| Max. switching current | 5 A (AC), 3 A (DC) |
| Max. switching voltage | 277 V AC, 30 V DC |
| Operating function | Single side stable |
| Terminal shape | PC board terminal |
| Min. switching load (reference value) | 100 mA 5 V DC |
| Dielectric strength (initial) : Between contact and coil | 4,000 Vrms for 1 min (detection current: 10 mA) |
| Dielectric strength (initial) : Between open contacts | 750 Vrms for 1 min (detection current: 10 mA) |
| Shock resistance (Destructive) | 1,000 m/s2 (half-sine shock pulse: 6 ms) |
| Shock resistance (Functional) | 300 m/s2 (half-sine shock pulse: 11 ms, detection time: 10 μs) |
