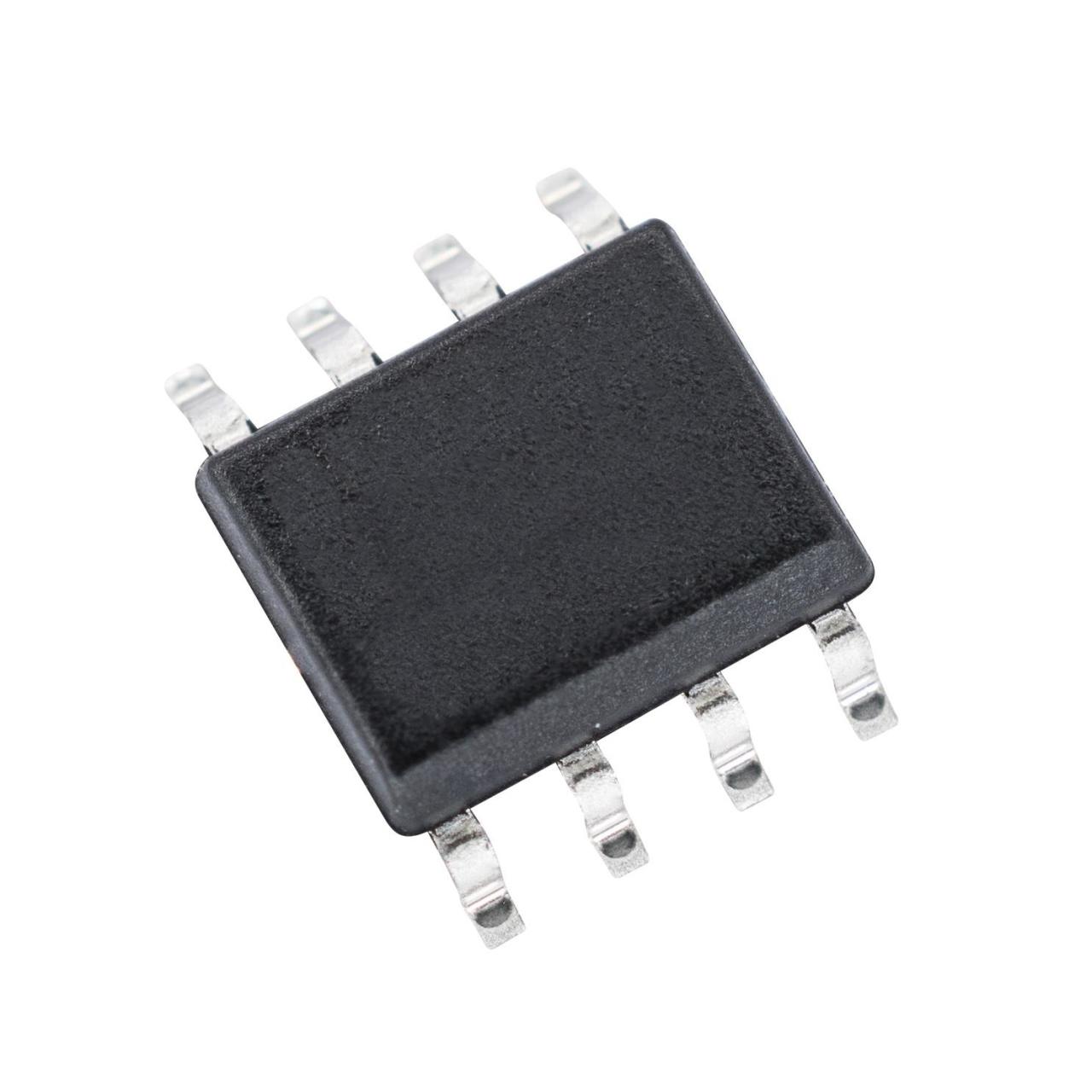

AO4423 SOIC-8 17A 30V 3.1W P-CHANNEL MOSFET TRANSISTOR
AO4423
Type Designator: AO4423
Type of Transistor: MOSFET
Type of Control Channel: P -Channel
Maximum Power Dissipation (Pd): 3.1 W
Maximum Drain-Source Voltage |Vds|: 30 V
Maximum Gate-Source Voltage |Vgs|: 25 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 2.6 V
Maximum Drain Current |Id|: 17 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 47 nC
Rise Time (tr): 8 nS
Drain-Source Capacitance (Cd): 583 pF
Maximum Drain-Source On-State Resistance (Rds): 0.0072 Ohm
Package: SO-8
