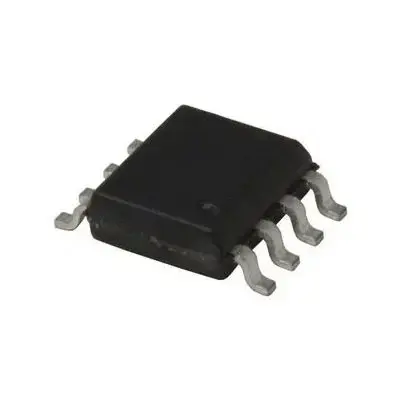

AO4822A SOIC-8 30V 8A 2W 2 N-CHANNEL MOSFET
₺37,08 + KDV
100 Adet Stokta var, şimdi sipariş ver hemen kargoda
Kategori
Stok Kodu
ELT-940713
Fiyat
37,08 TL + KDV
*4,14 TL den başlayan taksitlerle!
|
Category
|
Vgs(th) (Max) @ Id
2.4V @ 250µA
|
|
Manufacturer
Alpha & Omega Semiconductor Inc.
|
Gate Charge (Qg) (Max) @ Vgs
18nC @ 10V
|
|
Packaging
Tape & Reel (TR)
|
Input Capacitance (Ciss) (Max) @ Vds
888pF @ 15V
|
|
Part Status
Active
|
Power - Max
2W
|
|
Technology
MOSFET (Metal Oxide)
|
Operating Temperature
-55°C ~ 150°C (TJ)
|
|
Configuration
2 N-Channel (Dual)
|
Mounting Type
Surface Mount
|
|
FET Feature
Logic Level Gate
|
Package / Case
8-SOIC (0.154", 3.90mm Width)
|
|
Drain to Source Voltage (Vdss)
30V
|
Supplier Device Package
8-SOIC
|
|
Current - Continuous Drain (Id) @ 25°C
8A
|
Base Product Number
|
|
Rds On (Max) @ Id, Vgs
19mOhm @ 8A, 10V
|
Bu ürüne ilk yorumu siz yapın!
Ürün hakkında henüz soru sorulmamış.
Ürün Bilgisi
|
Category
|
Vgs(th) (Max) @ Id
2.4V @ 250µA
|
|
Manufacturer
Alpha & Omega Semiconductor Inc.
|
Gate Charge (Qg) (Max) @ Vgs
18nC @ 10V
|
|
Packaging
Tape & Reel (TR)
|
Input Capacitance (Ciss) (Max) @ Vds
888pF @ 15V
|
|
Part Status
Active
|
Power - Max
2W
|
|
Technology
MOSFET (Metal Oxide)
|
Operating Temperature
-55°C ~ 150°C (TJ)
|
|
Configuration
2 N-Channel (Dual)
|
Mounting Type
Surface Mount
|
|
FET Feature
Logic Level Gate
|
Package / Case
8-SOIC (0.154", 3.90mm Width)
|
|
Drain to Source Voltage (Vdss)
30V
|
Supplier Device Package
8-SOIC
|
|
Current - Continuous Drain (Id) @ 25°C
8A
|
Base Product Number
|
|
Rds On (Max) @ Id, Vgs
19mOhm @ 8A, 10V
|
