AP4951GM SOP-8 3.4A 60V 2W 96mΩ DUAL P-CHANNEL MOSFET
AP4951GM
Type Designator: AP4951GM
Type of Transistor: MOSFET
Type of Control Channel: P -Channel
Maximum Power Dissipation (Pd): 2 W
Maximum Drain-Source Voltage |Vds|: 60 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 3 V
Maximum Drain Current |Id|: 3.4 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 29.5 nC
Rise Time (tr): 5 nS
Drain-Source Capacitance (Cd): 125 pF
Maximum Drain-Source On-State Resistance (Rds): 0.096 Ohm

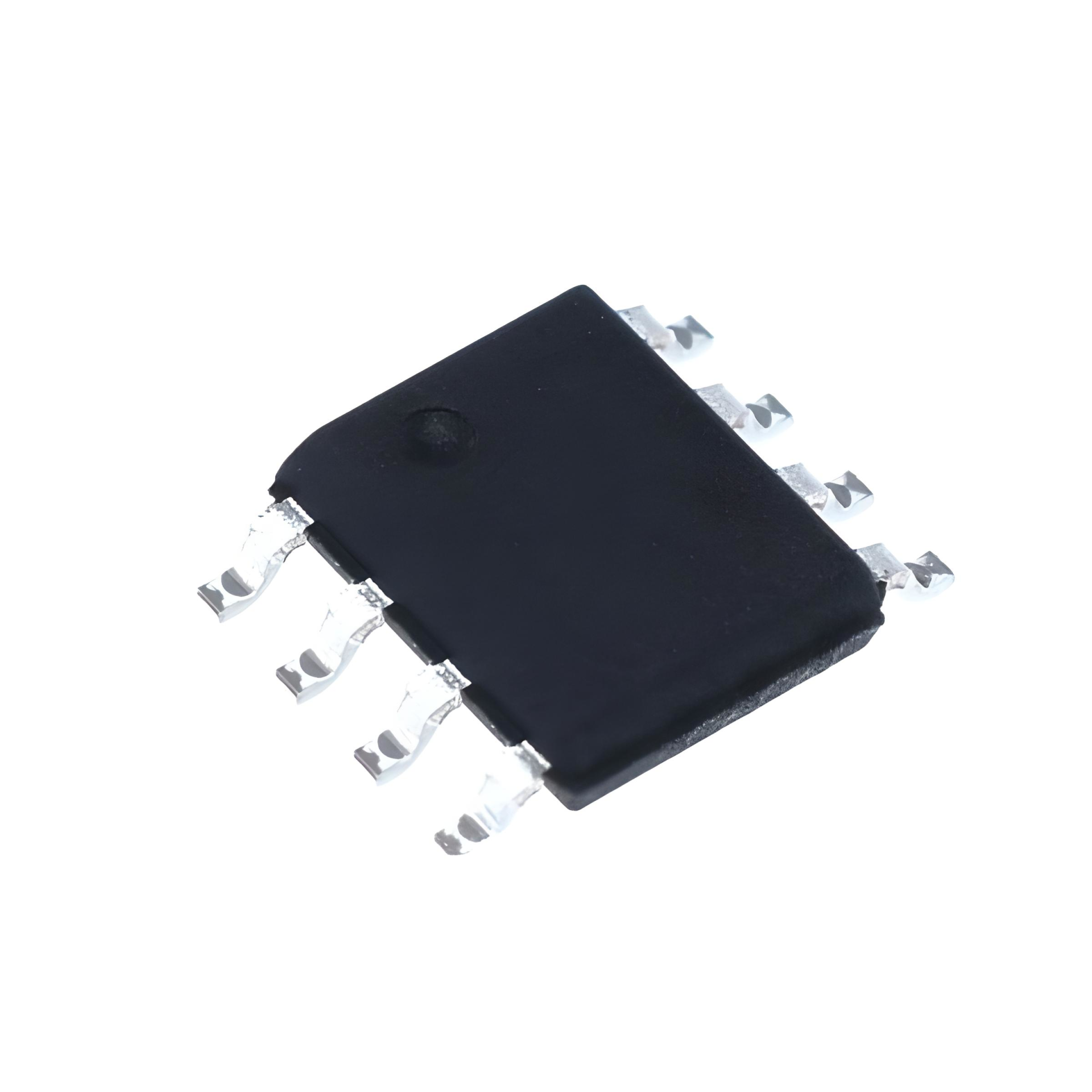

Package: SO8
Ürün Bilgisi
AP4951GM
Type Designator: AP4951GM
Type of Transistor: MOSFET
Type of Control Channel: P -Channel
Maximum Power Dissipation (Pd): 2 W
Maximum Drain-Source Voltage |Vds|: 60 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 3 V
Maximum Drain Current |Id|: 3.4 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 29.5 nC
Rise Time (tr): 5 nS
Drain-Source Capacitance (Cd): 125 pF
Maximum Drain-Source On-State Resistance (Rds): 0.096 Ohm
Package: SO8
