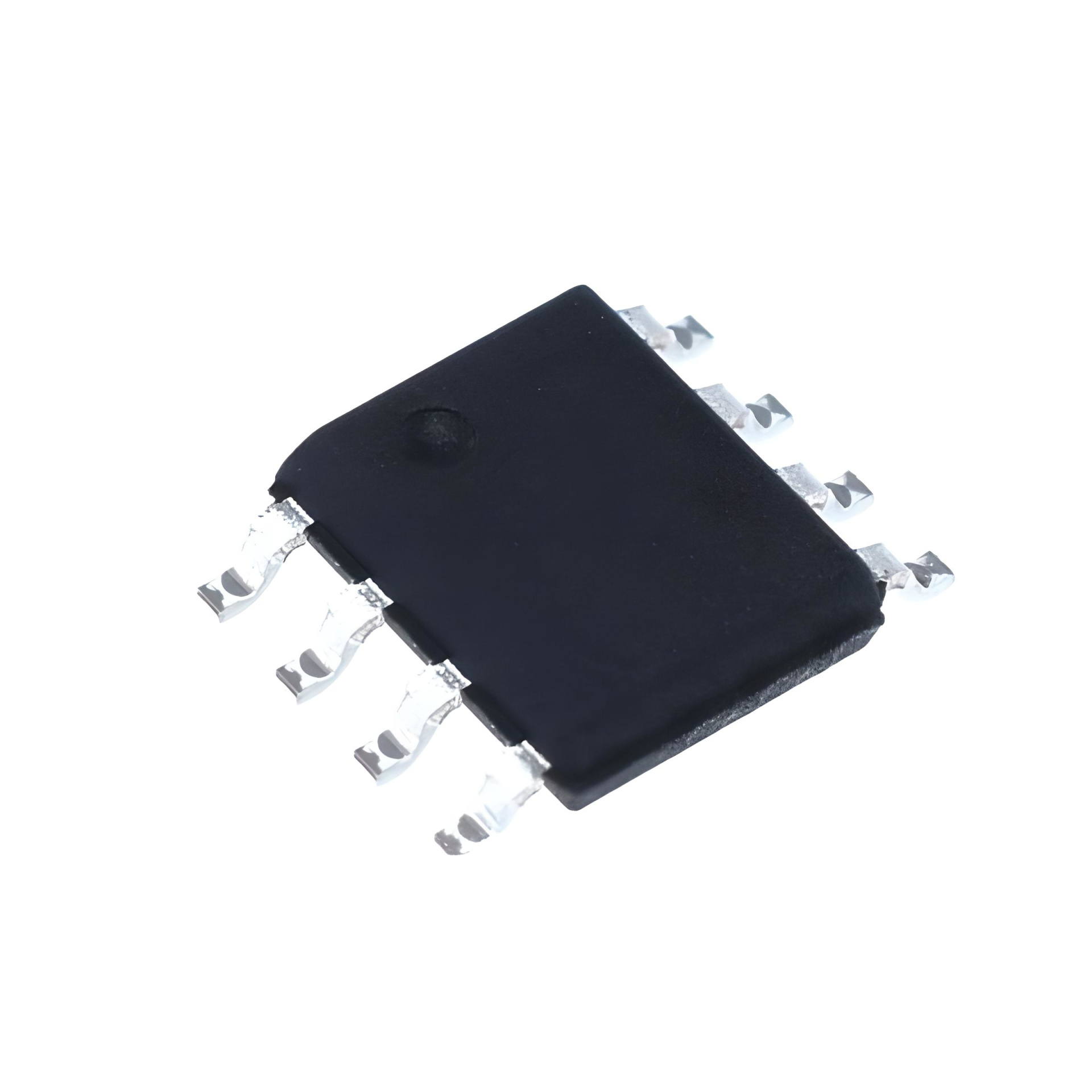

AP9977GM SOP-8 3.3A 60V 2W 100mΩ DUAL N-CHANNEL MOSFET
AP9977GM MOSFET
Type Designator: AP9977GM
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 2 W
Maximum Drain-Source Voltage |Vds|: 60 V
Maximum Gate-Source Voltage |Vgs|: 25 V
Maximum Drain Current |Id|: 3.3 A
Maximum Junction Temperature (Tj): 150 °C
Rise Time (tr): 5 nS
Drain-Source Capacitance (Cd): 55 pF
Maximum Drain-Source On-State Resistance (Rds): 0.1 Ohm
Package: SO-8
Ürün Bilgisi
AP9977GM MOSFET
Type Designator: AP9977GM
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 2 W
Maximum Drain-Source Voltage |Vds|: 60 V
Maximum Gate-Source Voltage |Vgs|: 25 V
Maximum Drain Current |Id|: 3.3 A
Maximum Junction Temperature (Tj): 150 °C
Rise Time (tr): 5 nS
Drain-Source Capacitance (Cd): 55 pF
Maximum Drain-Source On-State Resistance (Rds): 0.1 Ohm
Package: SO-8
