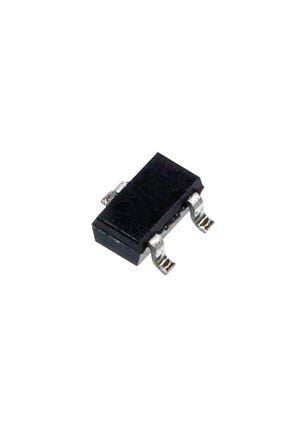

BC817-40W (6CT) SOT-323 500mA 45V 0.25W NPN TRANSISTOR
BC817-40WT1
Type Designator: BC817-40WT1
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 0.3 W
Maximum Collector-Base Voltage |Vcb|: 50 V
Maximum Collector-Emitter Voltage |Vce|: 45 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 0.5 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 200 MHz
Collector Capacitance (Cc): 10 pF
Forward Current Transfer Ratio (hFE), MIN: 250
Noise Figure, dB: -
Package: SOT-323
Ürün Bilgisi
BC817-40WT1
Type Designator: BC817-40WT1
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 0.3 W
Maximum Collector-Base Voltage |Vcb|: 50 V
Maximum Collector-Emitter Voltage |Vce|: 45 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 0.5 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 200 MHz
Collector Capacitance (Cc): 10 pF
Forward Current Transfer Ratio (hFE), MIN: 250
Noise Figure, dB: -
Package: SOT-323
