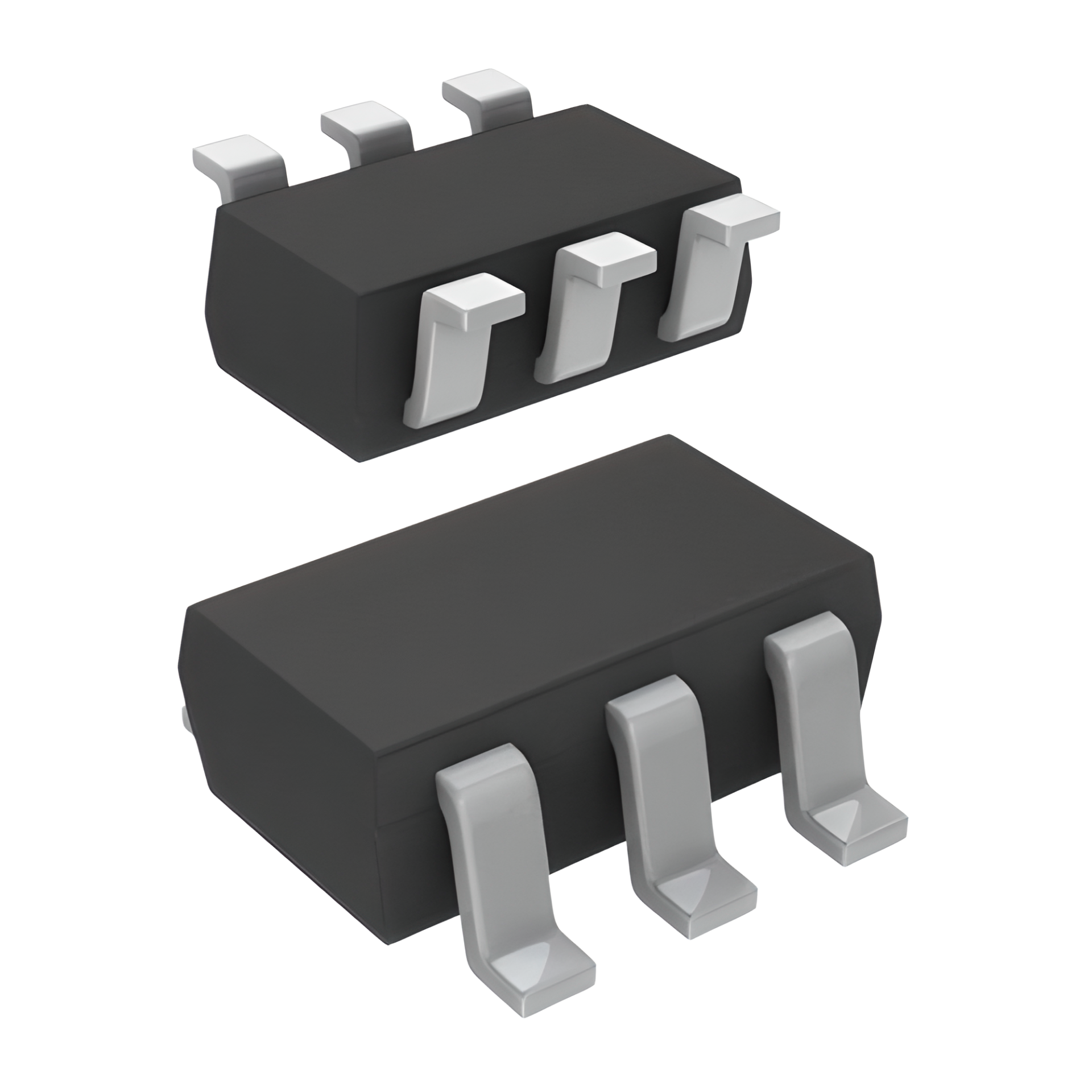

BC847BPN,115 - (13T) SOT-363 100mA 45V 300mW NPN/PNP TRANSISTOR
BC847BPN
Type Designator: BC847BPN
SMD Transistor Code: 13*_13t
Material of Transistor: Si
Polarity: NPN*PNP
Maximum Collector Power Dissipation (Pc): 0.2 W
Maximum Collector-Base Voltage |Vcb|: 50 V
Maximum Collector-Emitter Voltage |Vce|: 45 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 0.1 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 100 MHz
Forward Current Transfer Ratio (hFE), MIN: 200
Package: SOT363
