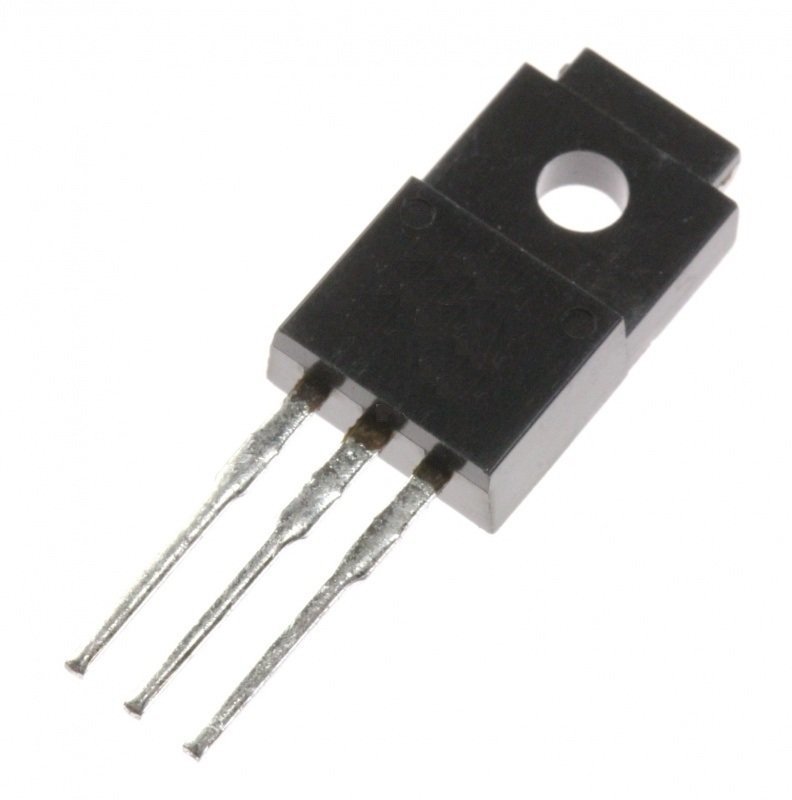

BCR12PM-12L TO-220FA 12A 600V TRIAC
BCR12PM-12L Triac
Type: Triac
Maximum repetitive peak and off-state voltage (VDRM): 600 V
Maximum RMS on-state current (IT(RMS)): 12 A
Non repetitive surge peak on-state current (ITSM): 120 A
Maximum operating junction and storage temperature range (Tstg, Tj): ..125 °C
Junction to case thermal resistance (RTH(j-c)): 3.5 K/W
Triggering gate voltage (VGT): 1.5 V
Peak on-state voltage drop (VTM): 1.6 V
Triggering gate current (IGT): 0.03 mA
Package: TO‑220F
Ürün Bilgisi
BCR12PM-12L Triac
Type: Triac
Maximum repetitive peak and off-state voltage (VDRM): 600 V
Maximum RMS on-state current (IT(RMS)): 12 A
Non repetitive surge peak on-state current (ITSM): 120 A
Maximum operating junction and storage temperature range (Tstg, Tj): ..125 °C
Junction to case thermal resistance (RTH(j-c)): 3.5 K/W
Triggering gate voltage (VGT): 1.5 V
Peak on-state voltage drop (VTM): 1.6 V
Triggering gate current (IGT): 0.03 mA
Package: TO‑220F
