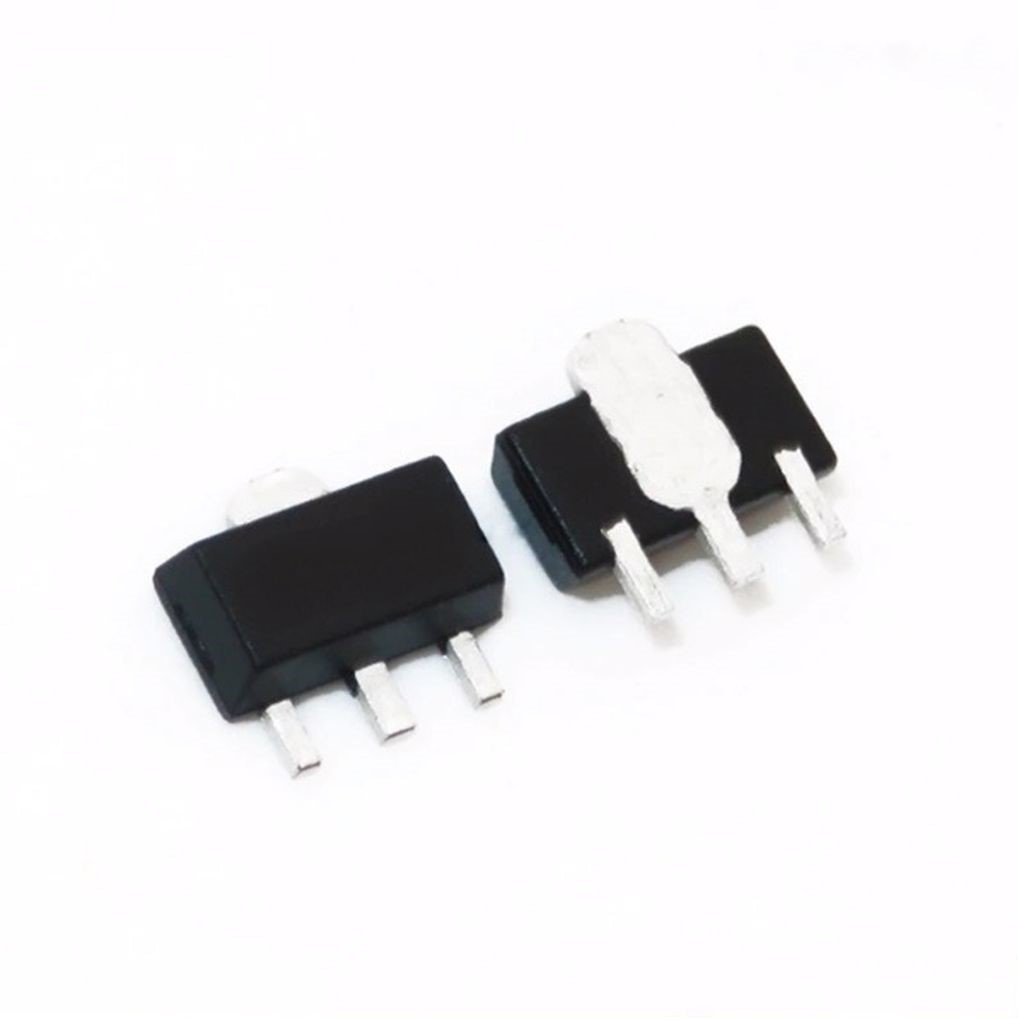

BCX53-16 - (AL) SOT-89 1A 80V 1W PNP TRANSISTOR
BCX53-16
Type Designator: BCX53-16
SMD Transistor Code: AL
Material of Transistor: Si
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 1 W
Maximum Collector-Base Voltage |Vcb|: 100 V
Maximum Collector-Emitter Voltage |Vce|: 80 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 1.5 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 125 MHz
Forward Current Transfer Ratio (hFE), MIN: 100
Package: SP0
