BDX53B TO-220 8A 80V NPN DARLINGTON BIPOLAR TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
753 Adet
Fiyat
0,26 USD + KDV
*1,22 TL den başlayan taksitlerle!
13,12 TL
BDX53B TO-220 8A 80V NPN DARLINGTON BIPOLAR TRANSISTOR
BDX53B
Type Designator: BDX53B
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 60 W
Maximum Collector-Base Voltage |Vcb|: 80 V
Maximum Collector-Emitter Voltage |Vce|: 80 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 8 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 20 MHz
Forward Current Transfer Ratio (hFE), MIN: 750

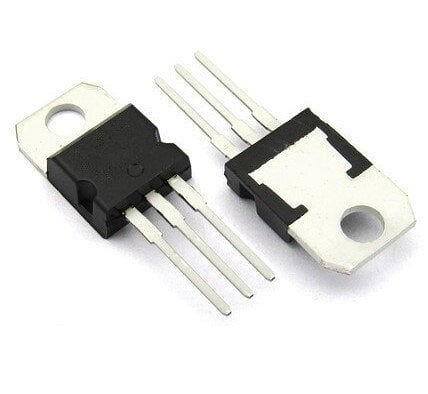

Package: TO220
