BDX66C

Type Designator: BDX66C

Material of Transistor: Si

Polarity: PNP

Maximum Collector Power Dissipation (Pc): 150 W

Maximum Collector-Base Voltage |Vcb|: 120 V

Maximum Collector-Emitter Voltage |Vce|: 120 V

Maximum Emitter-Base Voltage |Veb|: 5 V

Maximum Collector Current |Ic max|: 20 A

Max. Operating Junction Temperature (Tj): 200 °C

Transition Frequency (ft): 3 MHz

Forward Current Transfer Ratio (hFE), MIN: 2000

Noise Figure, dB: -

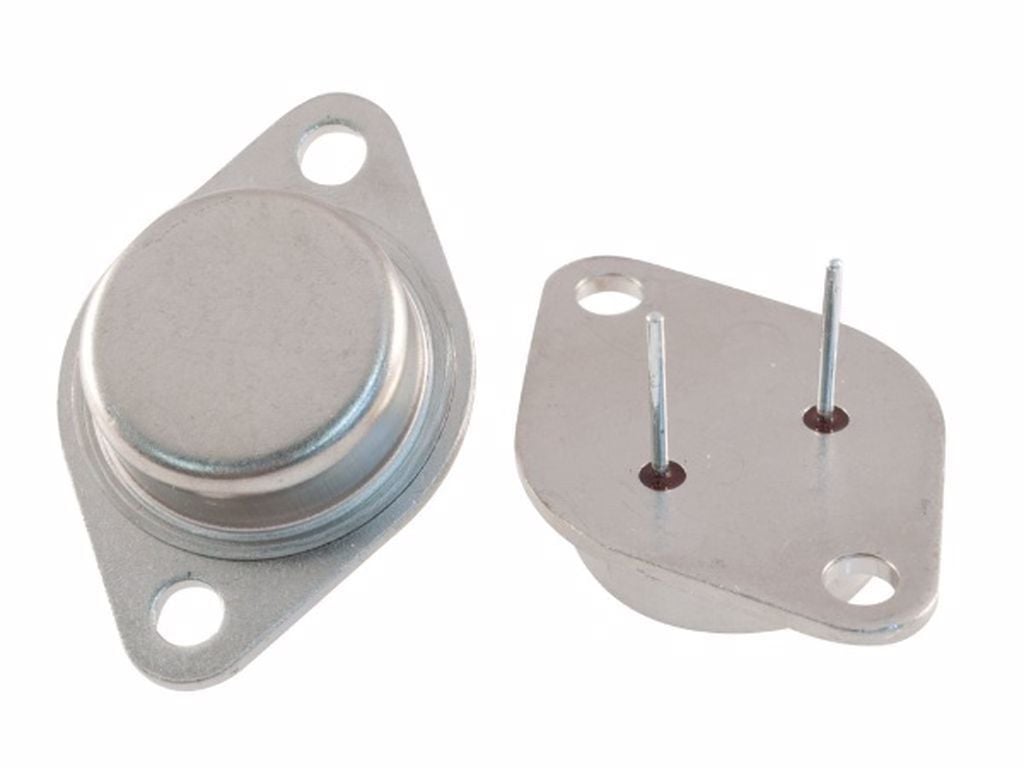

Package: TO3
