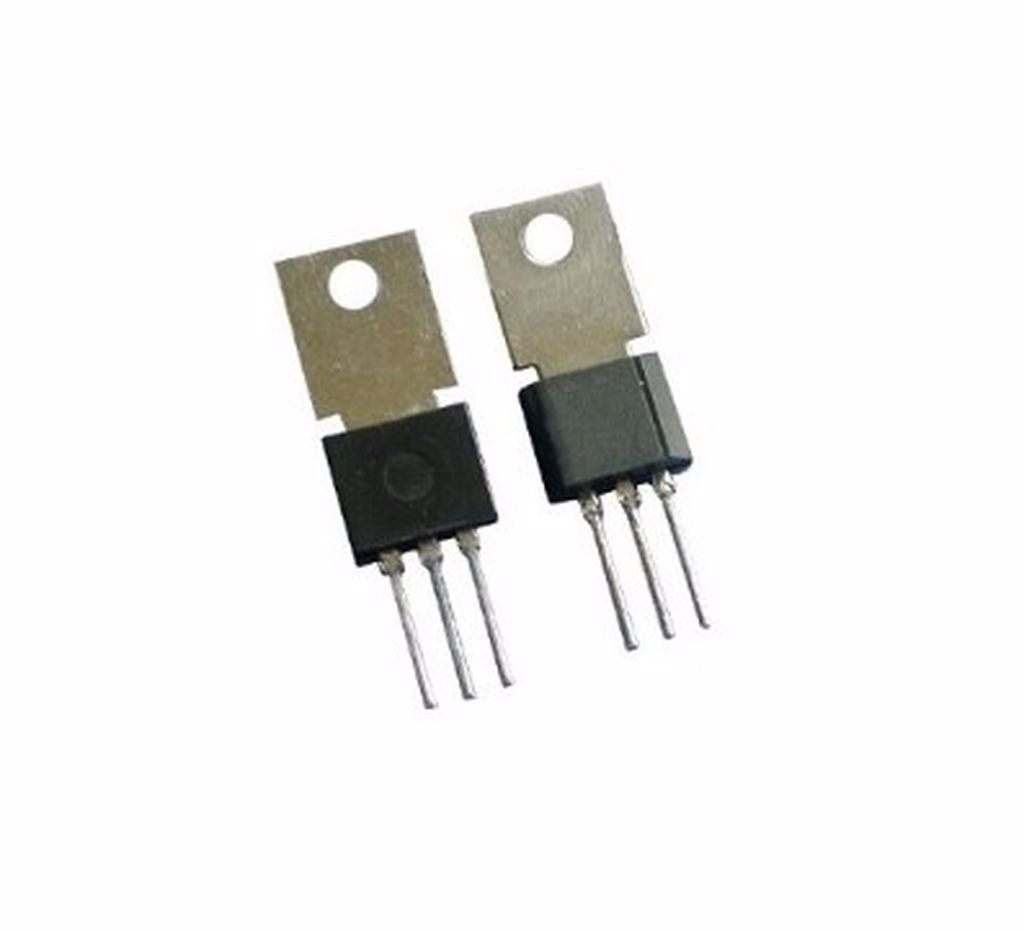

BF871 TO-202 50MA 300V 1.6W NPN TRANSISTOR
BF871
Type Designator: BF871
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 1.6 W
Maximum Collector-Base Voltage |Vcb|: 300 V
Maximum Collector-Emitter Voltage |Vce|: 300 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 0.1 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 60 MHz
Collector Capacitance (Cc): 2 pF
Forward Current Transfer Ratio (hFE), MIN: 50
Package: TO202
Ürün Bilgisi
BF871
Type Designator: BF871
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 1.6 W
Maximum Collector-Base Voltage |Vcb|: 300 V
Maximum Collector-Emitter Voltage |Vce|: 300 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 0.1 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 60 MHz
Collector Capacitance (Cc): 2 pF
Forward Current Transfer Ratio (hFE), MIN: 50
Package: TO202
