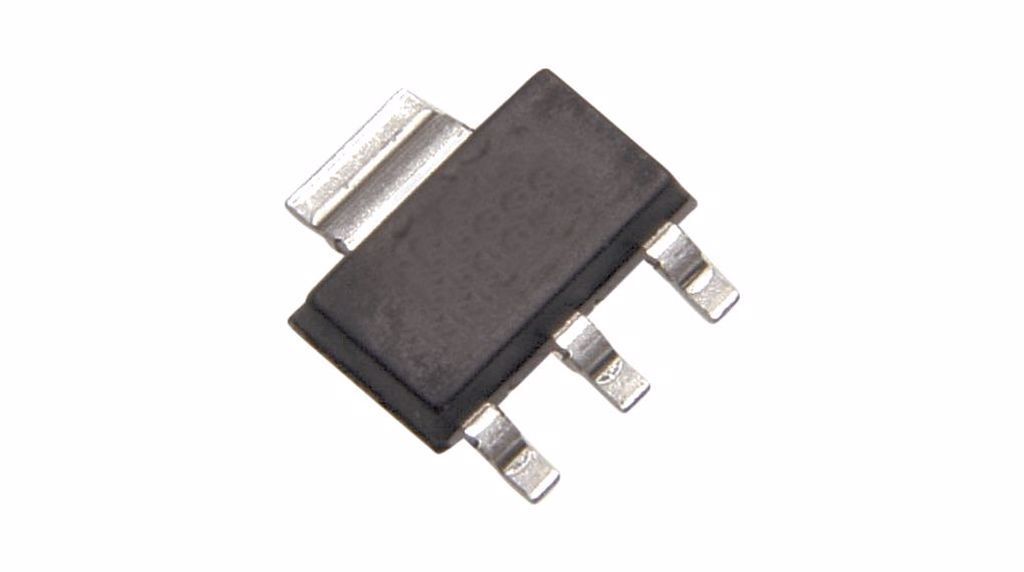

BFG591 SOT-223 0.2A 20V 2W NPN TRANSISTOR
Type Designator: BFG591
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 2 W
Maximum Collector-Base Voltage |Vcb|: 20 V
Maximum Collector-Emitter Voltage |Vce|: 15 V
Maximum Emitter-Base Voltage |Veb|: 3 V
Maximum Collector Current |Ic max|: 0.2 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 7000 MHz
Forward Current Transfer Ratio (hFE), MIN: 60
Noise Figure, dB: -
Package: SOT223
Ürün Bilgisi
Type Designator: BFG591
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 2 W
Maximum Collector-Base Voltage |Vcb|: 20 V
Maximum Collector-Emitter Voltage |Vce|: 15 V
Maximum Emitter-Base Voltage |Veb|: 3 V
Maximum Collector Current |Ic max|: 0.2 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 7000 MHz
Forward Current Transfer Ratio (hFE), MIN: 60
Noise Figure, dB: -
Package: SOT223
