BS108-E12 TO-92 250mA 200V N-CHANNEL MOSFET TRANSISTOR
BS108 MOSFET
Type Designator: BS108
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 1 W
Maximum Drain-Source Voltage |Vds|: 200 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 1.8 V
Maximum Drain Current |Id|: 0.25 A
Maximum Junction Temperature (Tj): 150 °C
Drain-Source Capacitance (Cd): 80 pF
Maximum Drain-Source On-State Resistance (Rds): 5 Ohm

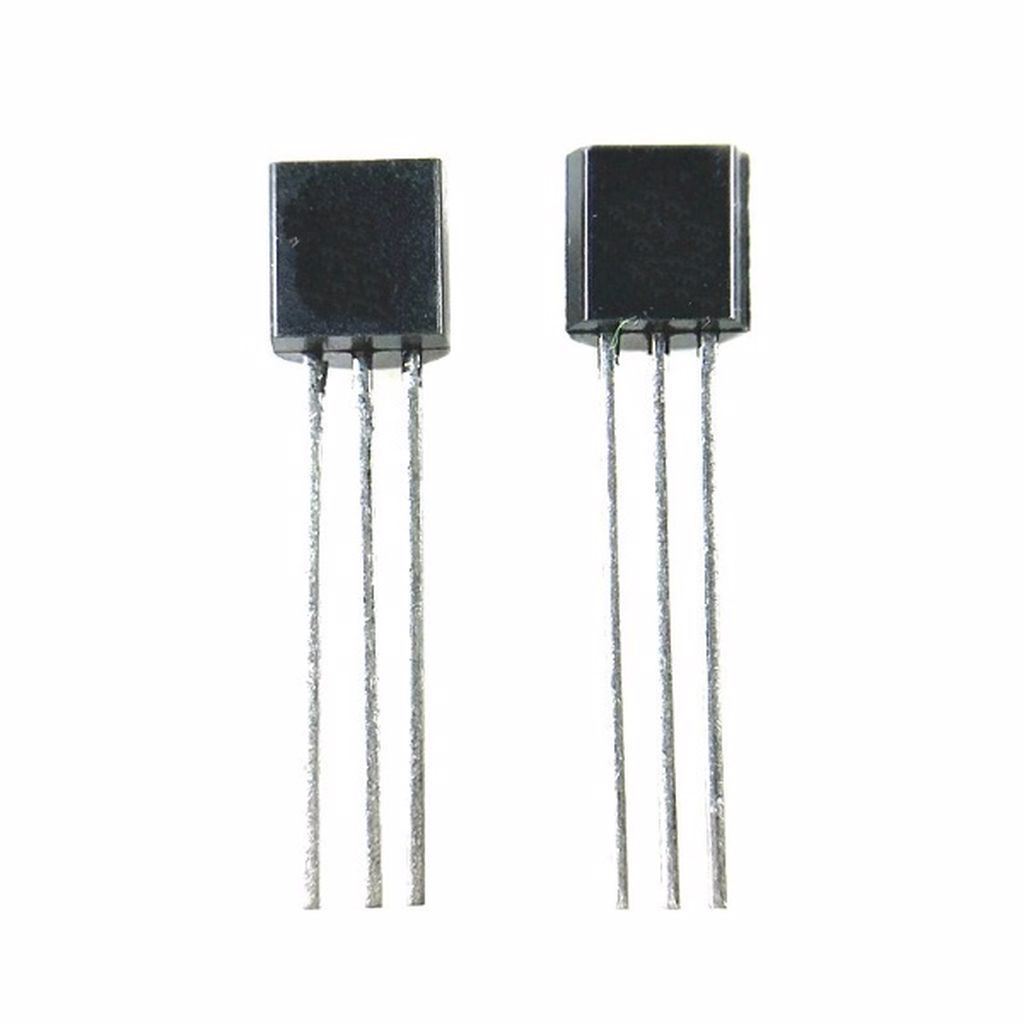

Package: TO92
Ürün Bilgisi
BS108 MOSFET
Type Designator: BS108
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 1 W
Maximum Drain-Source Voltage |Vds|: 200 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 1.8 V
Maximum Drain Current |Id|: 0.25 A
Maximum Junction Temperature (Tj): 150 °C
Drain-Source Capacitance (Cd): 80 pF
Maximum Drain-Source On-State Resistance (Rds): 5 Ohm
Package: TO92
