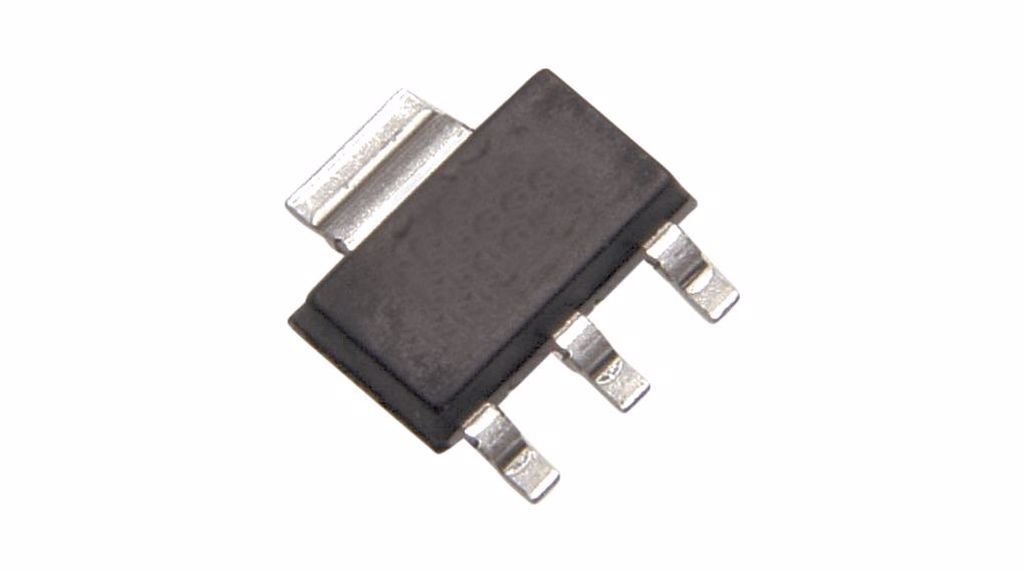

BSP225 SOT-223 0.225A 250V 1.5W 15OHM P-CHANNEL MOSFET
BSP225 MOSFET
Type Designator: BSP225
Type of Transistor: MOSFET
Type of Control Channel: P -Channel
Maximum Power Dissipation (Pd): 1.5 W
Maximum Drain-Source Voltage |Vds|: 250 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 2.8 V
Maximum Drain Current |Id|: 0.225 A
Maximum Junction Temperature (Tj): 150 °C
Maximum Drain-Source On-State Resistance (Rds): 15 Ohm
Package: SC73
Ürün Bilgisi
BSP225 MOSFET
Type Designator: BSP225
Type of Transistor: MOSFET
Type of Control Channel: P -Channel
Maximum Power Dissipation (Pd): 1.5 W
Maximum Drain-Source Voltage |Vds|: 250 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 2.8 V
Maximum Drain Current |Id|: 0.225 A
Maximum Junction Temperature (Tj): 150 °C
Maximum Drain-Source On-State Resistance (Rds): 15 Ohm
Package: SC73
