BSP372 SOT-223 1.7A 100V 1.8W 0.31Ω N-CHANNEL MOSFET
BSP372 MOSFET
Type Designator: BSP372
Marking Code: BSP372
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 1.8 W
Maximum Drain-Source Voltage |Vds|: 100 V
Maximum Gate-Source Voltage |Vgs|: 14 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 2 V
Maximum Drain Current |Id|: 1.7 A
Maximum Junction Temperature (Tj): 150 °C
Rise Time (tr): 35 nS
Drain-Source Capacitance (Cd): 80 pF
Maximum Drain-Source On-State Resistance (Rds): 0.31 Ohm

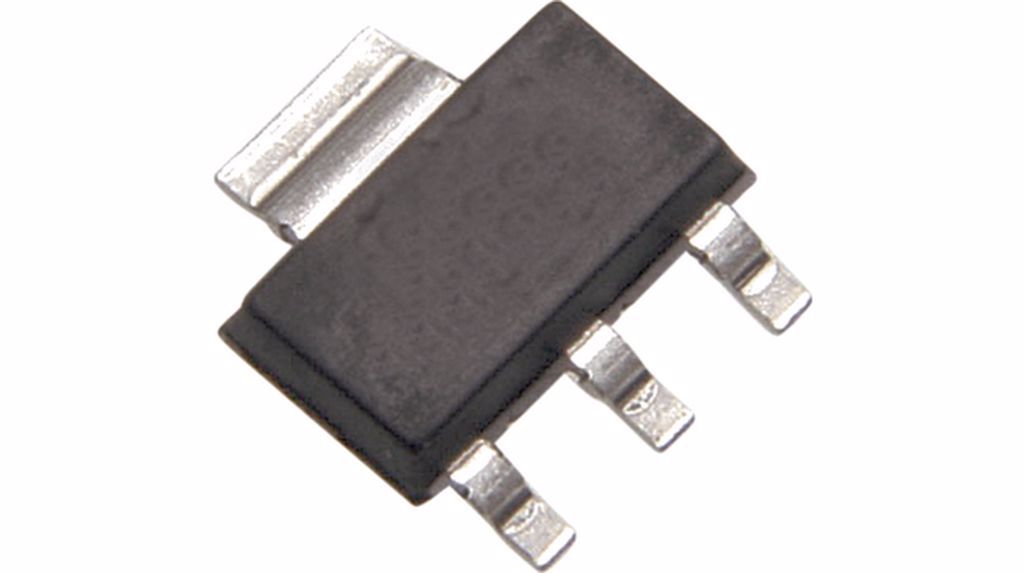

Package: SOT-223
Ürün Bilgisi
BSP372 MOSFET
Type Designator: BSP372
Marking Code: BSP372
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 1.8 W
Maximum Drain-Source Voltage |Vds|: 100 V
Maximum Gate-Source Voltage |Vgs|: 14 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 2 V
Maximum Drain Current |Id|: 1.7 A
Maximum Junction Temperature (Tj): 150 °C
Rise Time (tr): 35 nS
Drain-Source Capacitance (Cd): 80 pF
Maximum Drain-Source On-State Resistance (Rds): 0.31 Ohm
Package: SOT-223
