BSP373 SOT-223 1.7A 100V 1.8W N-CHANNEL MOSFET
BSP373
Type Designator: BSP373
Marking Code: BSP373
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 1.8 W
Maximum Drain-Source Voltage |Vds|: 100 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 4 V
Maximum Drain Current |Id|: 1.7 A
Maximum Junction Temperature (Tj): 150 °C
Rise Time (tr): 30 nS
Drain-Source Capacitance (Cd): 125 pF
Maximum Drain-Source On-State Resistance (Rds): 0.3 Ohm

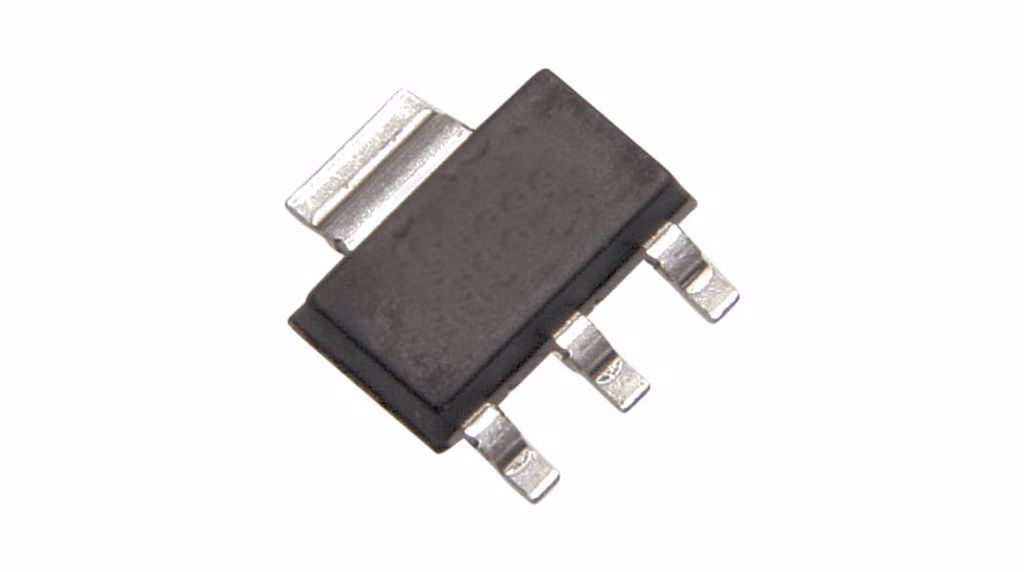

Package: SOT-223
Ürün Bilgisi
BSP373
Type Designator: BSP373
Marking Code: BSP373
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 1.8 W
Maximum Drain-Source Voltage |Vds|: 100 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 4 V
Maximum Drain Current |Id|: 1.7 A
Maximum Junction Temperature (Tj): 150 °C
Rise Time (tr): 30 nS
Drain-Source Capacitance (Cd): 125 pF
Maximum Drain-Source On-State Resistance (Rds): 0.3 Ohm
Package: SOT-223
