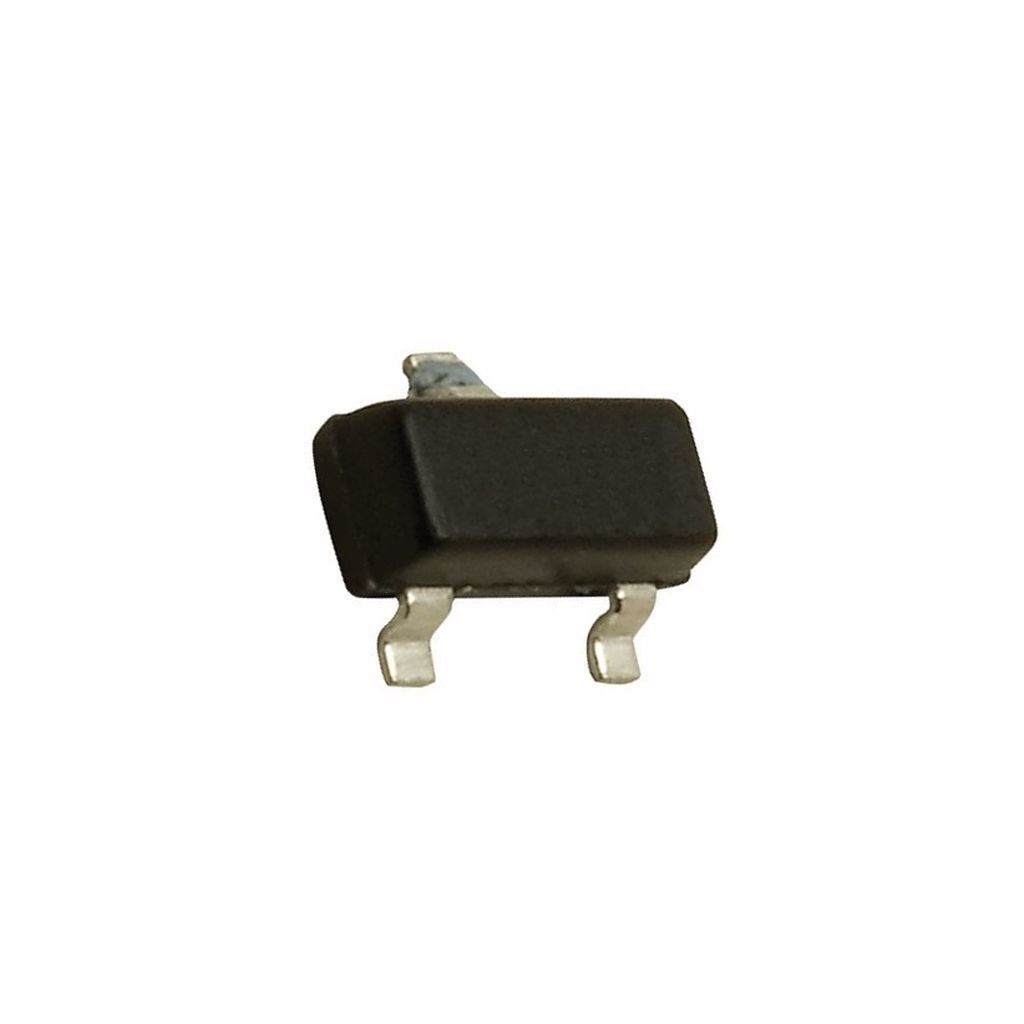

BSS84A - (K84) SOT-23 0.17A 60V 0.225W 8Ω P-CHANNEL MOSFET - ONLİNE ÖZEL FİYAT
BSS84A MOSFET
Type Designator: BSS84A
Marking Code: B84
Type of Transistor: MOSFET
Type of Control Channel: P -Channel
Maximum Power Dissipation (Pd): 0.225 W
Maximum Drain-Source Voltage |Vds|: 60 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 2 V
Maximum Drain Current |Id|: 0.17 A
Maximum Junction Temperature (Tj): 150 °C
Rise Time (tr): 1 nS
Drain-Source Capacitance (Cd): 10 pF
Maximum Drain-Source On-State Resistance (Rds): 8 Ohm
Package: SOT23
Ürün Bilgisi
BSS84A MOSFET
Type Designator: BSS84A
Marking Code: B84
Type of Transistor: MOSFET
Type of Control Channel: P -Channel
Maximum Power Dissipation (Pd): 0.225 W
Maximum Drain-Source Voltage |Vds|: 60 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 2 V
Maximum Drain Current |Id|: 0.17 A
Maximum Junction Temperature (Tj): 150 °C
Rise Time (tr): 1 nS
Drain-Source Capacitance (Cd): 10 pF
Maximum Drain-Source On-State Resistance (Rds): 8 Ohm
Package: SOT23
