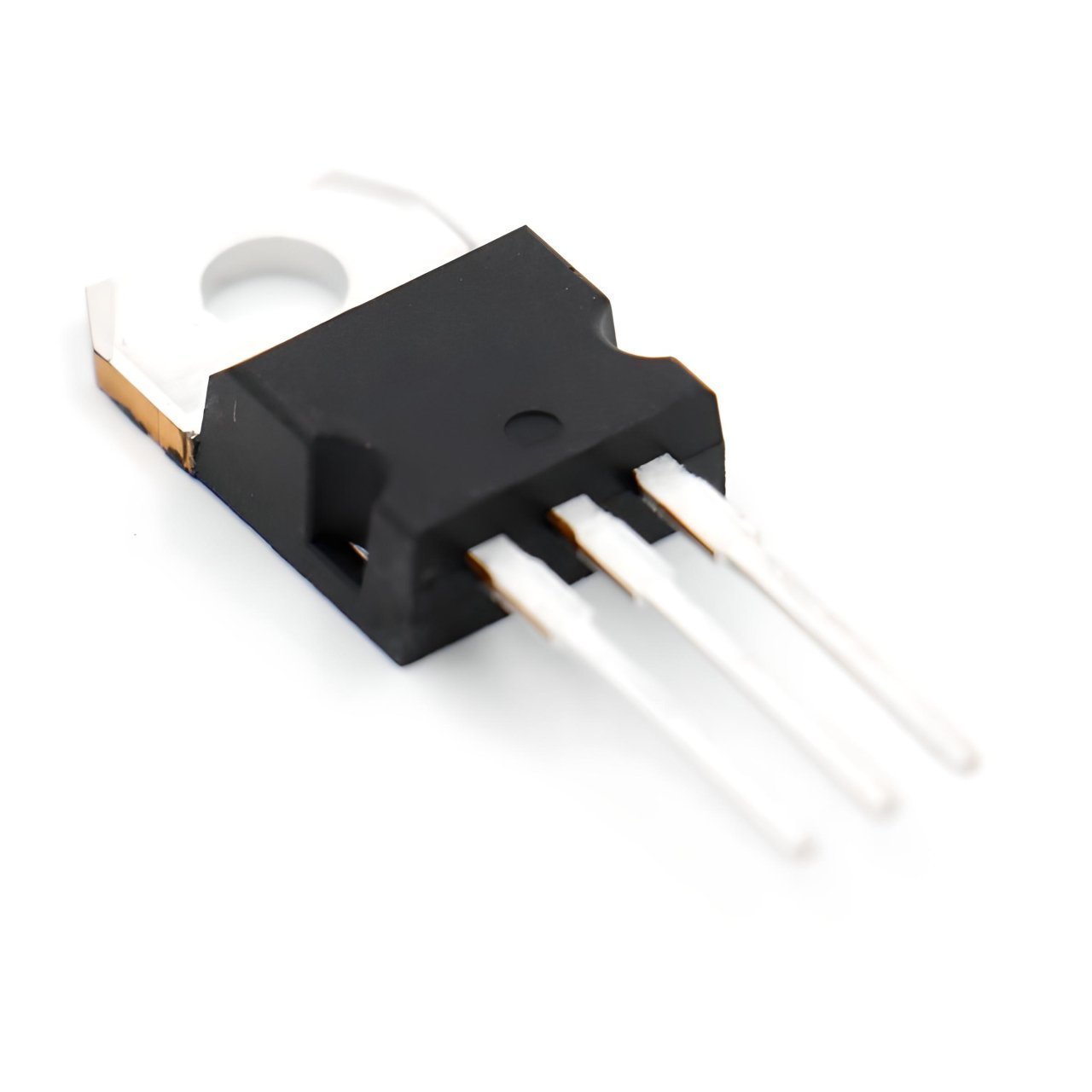

BTA16-600CWRG TO-220 600V 16A TRIAC
BTA16-600CWRG
Type: Triac
Maximum repetitive peak and off-state voltage (VDRM): 600 V
Maximum RMS on-state current (IT(RMS)): 16 A
Non repetitive surge peak on-state current (ITSM): 160 A
Maximum operating junction and storage temperature range (Tstg, Tj): -40..125 °C
Junction to ambient thermal resistance (RTH(j-a)): 60 K/W
Junction to case thermal resistance (RTH(j-c)): 2.1 K/W
Triggering gate voltage (VGT): 1.3 V
Peak on-state voltage drop (VTM): 1.55 V
Triggering gate current (IGT): 35 mA
Holding current (IH): 35 mA
Package: TO‑220
Ürün Bilgisi
BTA16-600CWRG
Type: Triac
Maximum repetitive peak and off-state voltage (VDRM): 600 V
Maximum RMS on-state current (IT(RMS)): 16 A
Non repetitive surge peak on-state current (ITSM): 160 A
Maximum operating junction and storage temperature range (Tstg, Tj): -40..125 °C
Junction to ambient thermal resistance (RTH(j-a)): 60 K/W
Junction to case thermal resistance (RTH(j-c)): 2.1 K/W
Triggering gate voltage (VGT): 1.3 V
Peak on-state voltage drop (VTM): 1.55 V
Triggering gate current (IGT): 35 mA
Holding current (IH): 35 mA
Package: TO‑220
