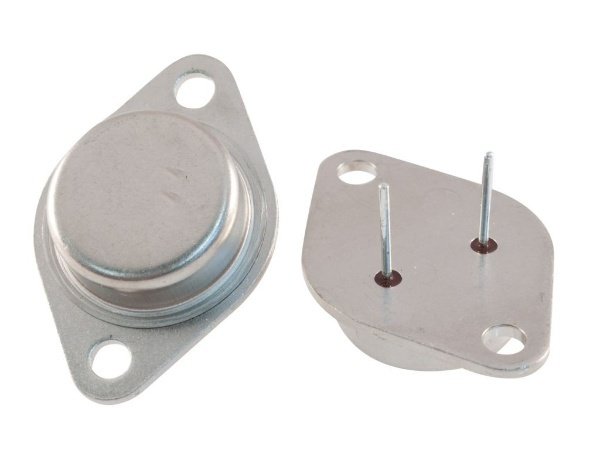

BU931 TO-3 15A 500V NPN POWER DARLINGTON TRANSISTOR
0 - Yorum
Kategori
Kalan Adet
25 Adet
Fiyat
10,90 USD + KDV
*51,14 TL den başlayan taksitlerle!
550,02 TL
BU931
Type Designator: BU931
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 175 W
Maximum Collector-Base Voltage |Vcb|: 500 V
Maximum Collector-Emitter Voltage |Vce|: 400 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 15 A
Max. Operating Junction Temperature (Tj): 175 °C
Forward Current Transfer Ratio (hFE), MIN: 80
Package: TO3
