BUK9222-55A TO-252 55A-48A N-channel Mosfet
₺112,63 + KDV
46 Adet Stokta var, şimdi sipariş ver hemen kargoda
Kategori
Stok Kodu
TR15032
Fiyat
112,63 TL + KDV
*12,57 TL den başlayan taksitlerle!
BUK9222-55A TO-252 55A-48A N-channel Mosfet
Type of Transistor: MOSFET
Type of Control Channel: N-Channel
Absolute Maximum Ratings
Pd ⓘ - Maximum Power Dissipation: 103 W
|Vds|ⓘ - Maximum Drain-Source Voltage: 55 V
|Vgs|ⓘ - Maximum Gate-Source Voltage: 15 V
|Id| ⓘ - Maximum Drain Current: 48 A
Tj ⓘ - Maximum Junction Temperature: 175 °C
Electrical Characteristics
|VGSth|ⓘ - Maximum Gate-Threshold Voltage: 2 V
RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.02 Ohm

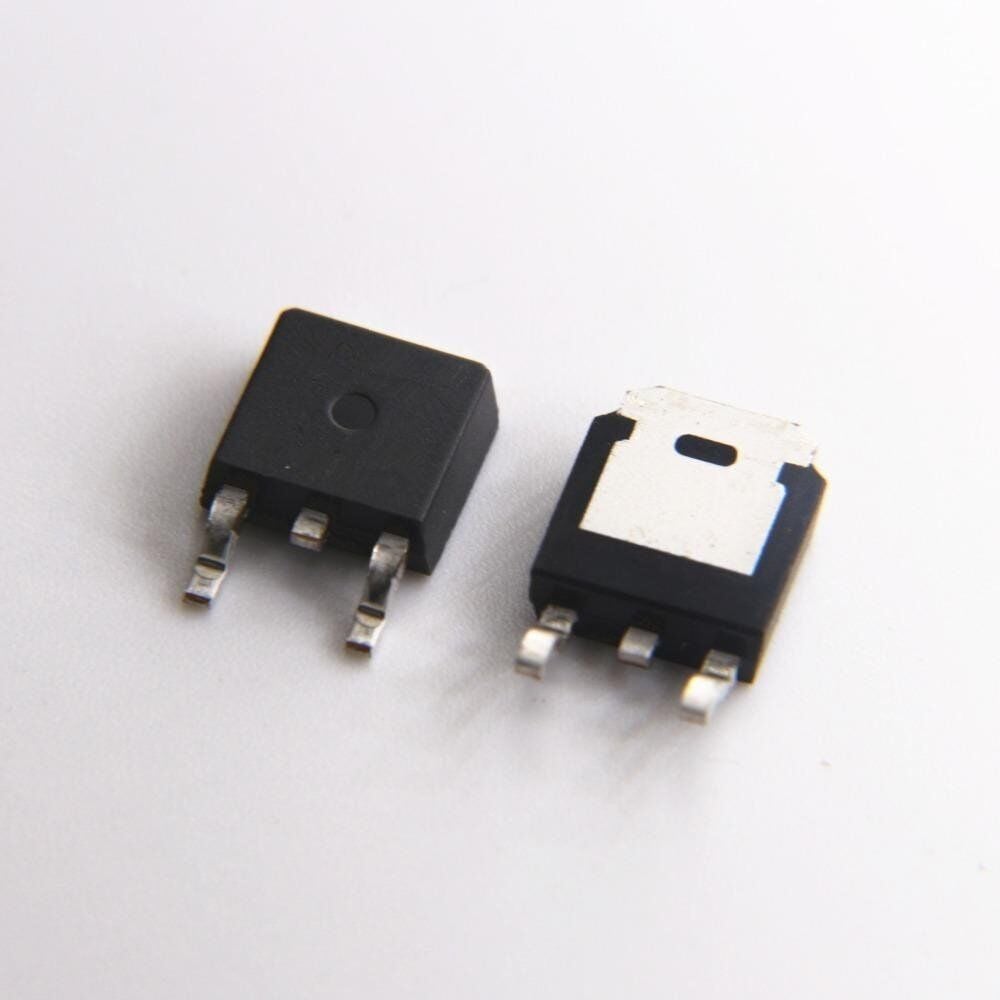

Package: DPAK
Bu ürüne ilk yorumu siz yapın!
Ürün hakkında henüz soru sorulmamış.
Ürün Bilgisi
BUK9222-55A TO-252 55A-48A N-channel Mosfet
Type of Transistor: MOSFET
Type of Control Channel: N-Channel
Absolute Maximum Ratings
Pd ⓘ - Maximum Power Dissipation: 103 W
|Vds|ⓘ - Maximum Drain-Source Voltage: 55 V
|Vgs|ⓘ - Maximum Gate-Source Voltage: 15 V
|Id| ⓘ - Maximum Drain Current: 48 A
Tj ⓘ - Maximum Junction Temperature: 175 °C
Electrical Characteristics
|VGSth|ⓘ - Maximum Gate-Threshold Voltage: 2 V
RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.02 Ohm
Package: DPAK
