BUX37

Type Designator: BUX37

Material of Transistor: Si

Polarity: NPN

Maximum Collector Power Dissipation (Pc): 35 W

Maximum Collector-Base Voltage |Vcb|: 500 V

Maximum Collector-Emitter Voltage |Vce|: 400 V

Maximum Emitter-Base Voltage |Veb|: 15 V

Maximum Collector Current |Ic max|: 15 A

Max. Operating Junction Temperature (Tj): 150 °C

Forward Current Transfer Ratio (hFE), MIN: 20

Noise Figure, dB: -

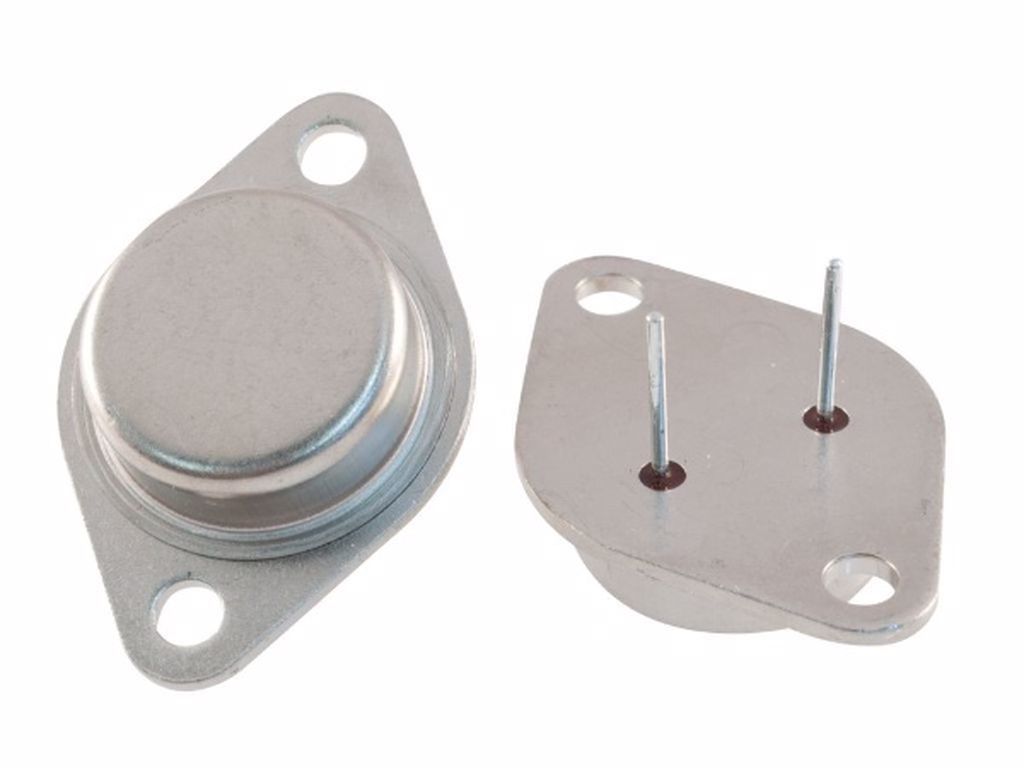

Package: TO3
