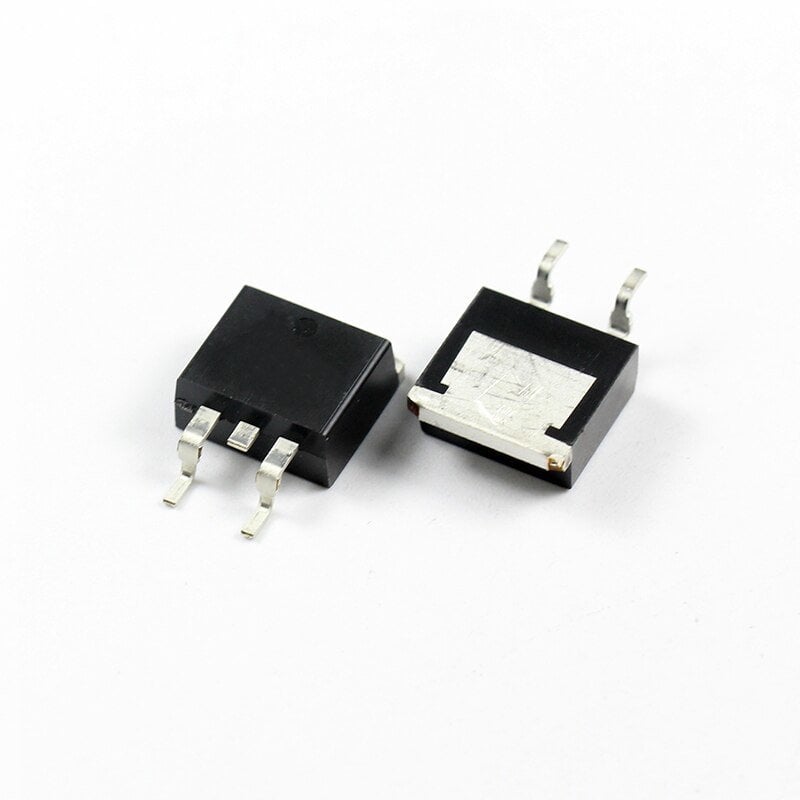

BUZ111S TO-263 80A 55V N-CHANNEL SIPMOS POWER TRANSISTOR
BUZ111S MOSFET
Type Designator: BUZ111S
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 300 W
Maximum Drain-Source Voltage |Vds|: 55 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 4 V
Maximum Drain Current |Id|: 80 A
Maximum Junction Temperature (Tj): 175 °C
Total Gate Charge (Qg): 125 nC
Rise Time (tr): 30 nS
Drain-Source Capacitance (Cd): 1100 pF
Maximum Drain-Source On-State Resistance (Rds): 0.008 Ohm
Package: P-TO220
Ürün Bilgisi
BUZ111S MOSFET
Type Designator: BUZ111S
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 300 W
Maximum Drain-Source Voltage |Vds|: 55 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 4 V
Maximum Drain Current |Id|: 80 A
Maximum Junction Temperature (Tj): 175 °C
Total Gate Charge (Qg): 125 nC
Rise Time (tr): 30 nS
Drain-Source Capacitance (Cd): 1100 pF
Maximum Drain-Source On-State Resistance (Rds): 0.008 Ohm
Package: P-TO220
