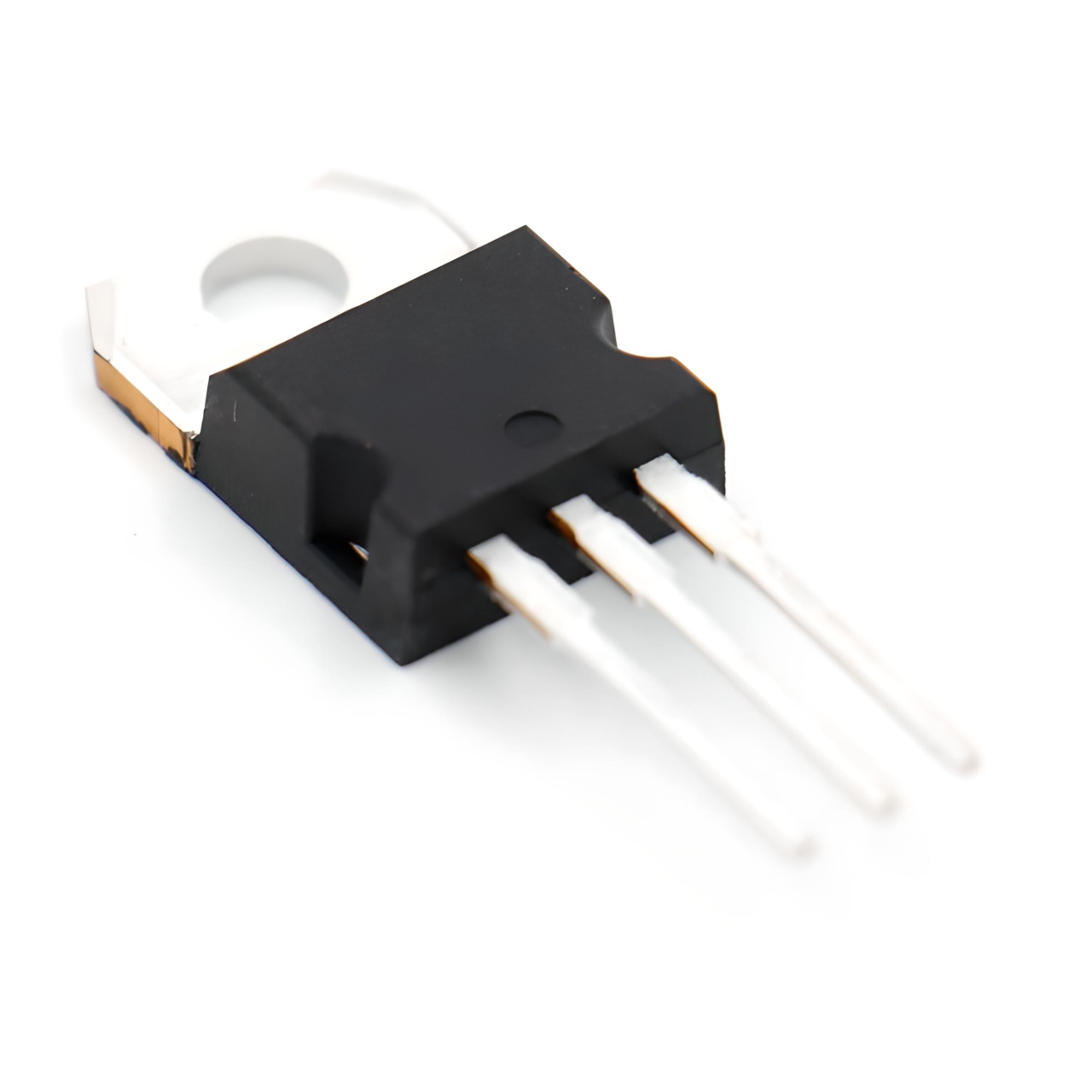

BUZ80 TO-220 3.4A 800V N-CHANNEL MOSFET TRANSISTOR
BUZ80 MOSFET
Type Designator: BUZ80
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 100 W
Maximum Drain-Source Voltage |Vds|: 800 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Drain Current |Id|: 3.4 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 42 nC
Drain-Source Capacitance (Cd): 850 pF
Maximum Drain-Source On-State Resistance (Rds): 4 Ohm
Package: TO220
Ürün Bilgisi
BUZ80 MOSFET
Type Designator: BUZ80
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 100 W
Maximum Drain-Source Voltage |Vds|: 800 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Drain Current |Id|: 3.4 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 42 nC
Drain-Source Capacitance (Cd): 850 pF
Maximum Drain-Source On-State Resistance (Rds): 4 Ohm
Package: TO220
