CMA30E1600PB TO-220 30A 1600V SINGLE THYRISTOR
CMA30E1600PB
Type: SCR
Maximum repetitive peak and off-state voltage (VDRM): 1600 V
Maximum average on-state current (IT(AVR)): 30 A
Maximum RMS on-state current (IT(RMS)): 47 A
Non repetitive surge peak on-state current (ITSM): 280 A
Critical rate of rise of off-state voltage (dV/dt): 500 V/µs
Maximum operating junction and storage temperature range (Tstg, Tj): -40..125 °C
Junction to case thermal resistance (RTH(j-c)): 2.5 K/W
Triggering gate voltage (VGT): 1.3 V
Peak on-state voltage drop (VTM): 1.42 V
Triggering gate current (IGT): 28 mA

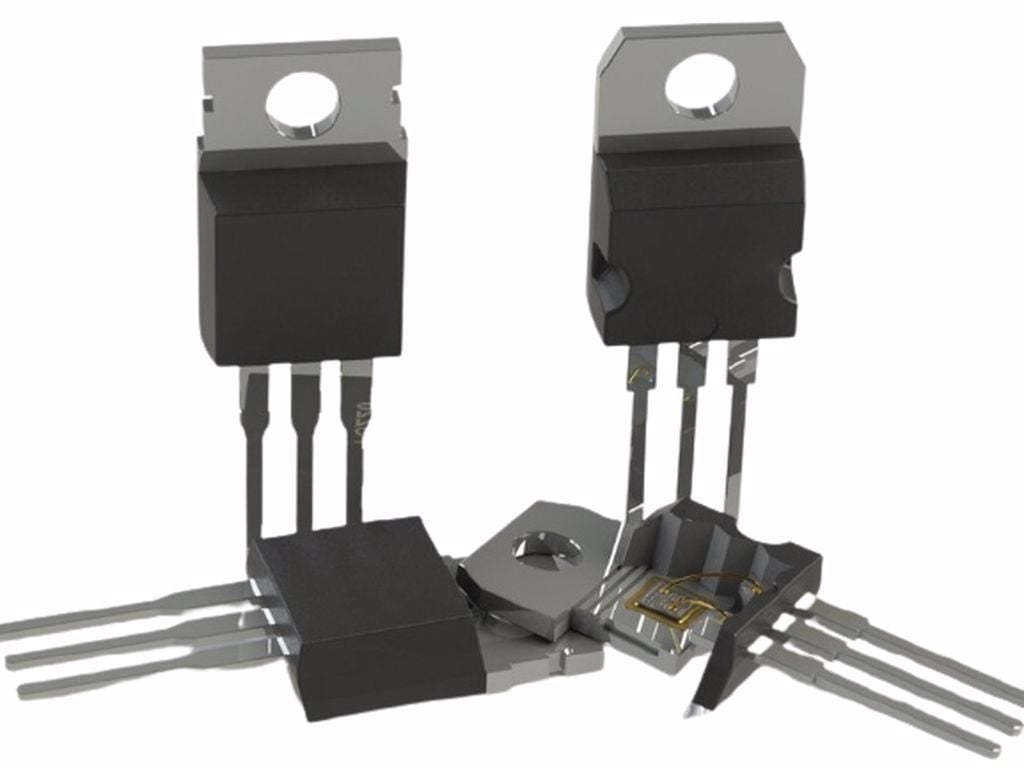

Package: TO-220AB
