CS1N80A1H TO-92 0.65A 800V 3W 15OHM N-CHANNEL MOSFET
CS1N80A1H MOSFET
Type Designator: CS1N80A1H
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 3 W
Maximum Drain-Source Voltage |Vds|: 800 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 4 V
Maximum Drain Current |Id|: 0.65 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 6.7 nC
Rise Time (tr): 4.6 nS
Drain-Source Capacitance (Cd): 16 pF
Maximum Drain-Source On-State Resistance (Rds): 15 Ohm

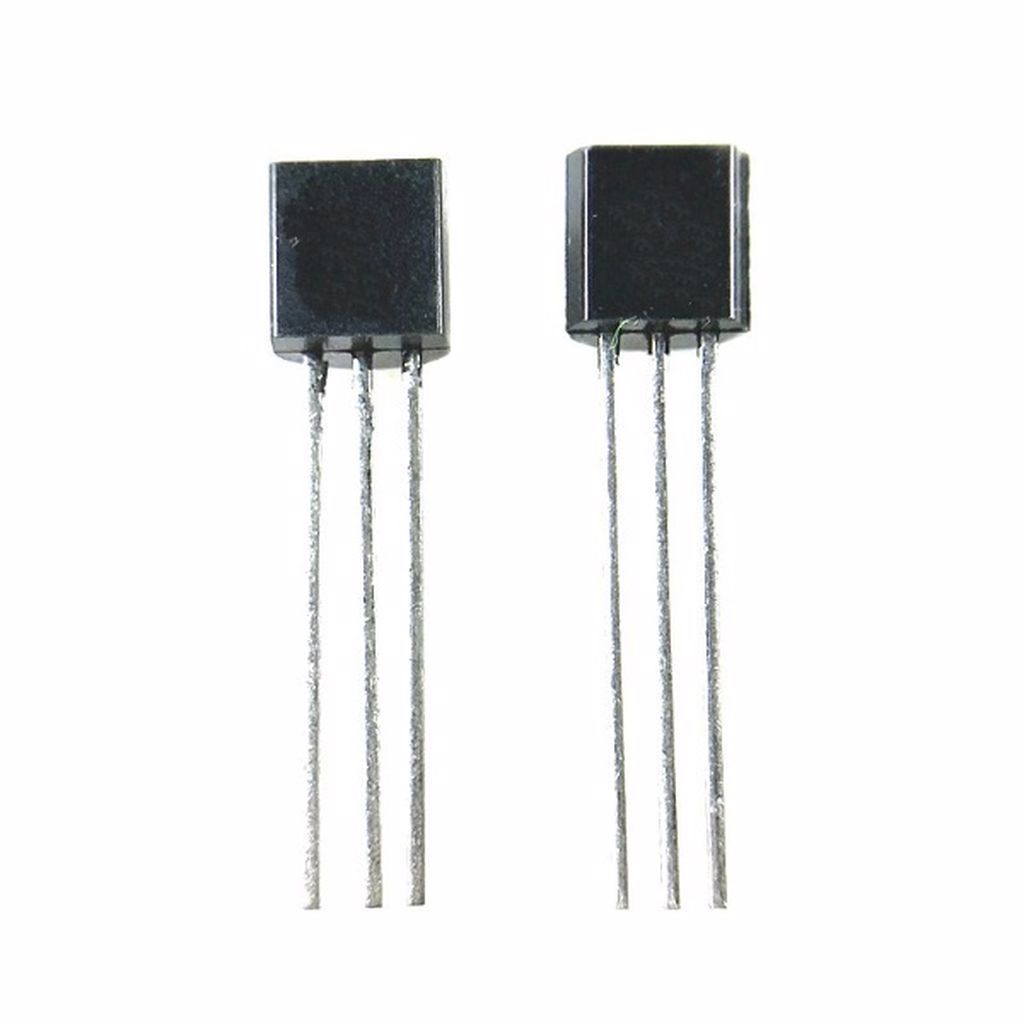

Package: TO-92
Ürün Bilgisi
CS1N80A1H MOSFET
Type Designator: CS1N80A1H
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 3 W
Maximum Drain-Source Voltage |Vds|: 800 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 4 V
Maximum Drain Current |Id|: 0.65 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 6.7 nC
Rise Time (tr): 4.6 nS
Drain-Source Capacitance (Cd): 16 pF
Maximum Drain-Source On-State Resistance (Rds): 15 Ohm
Package: TO-92
