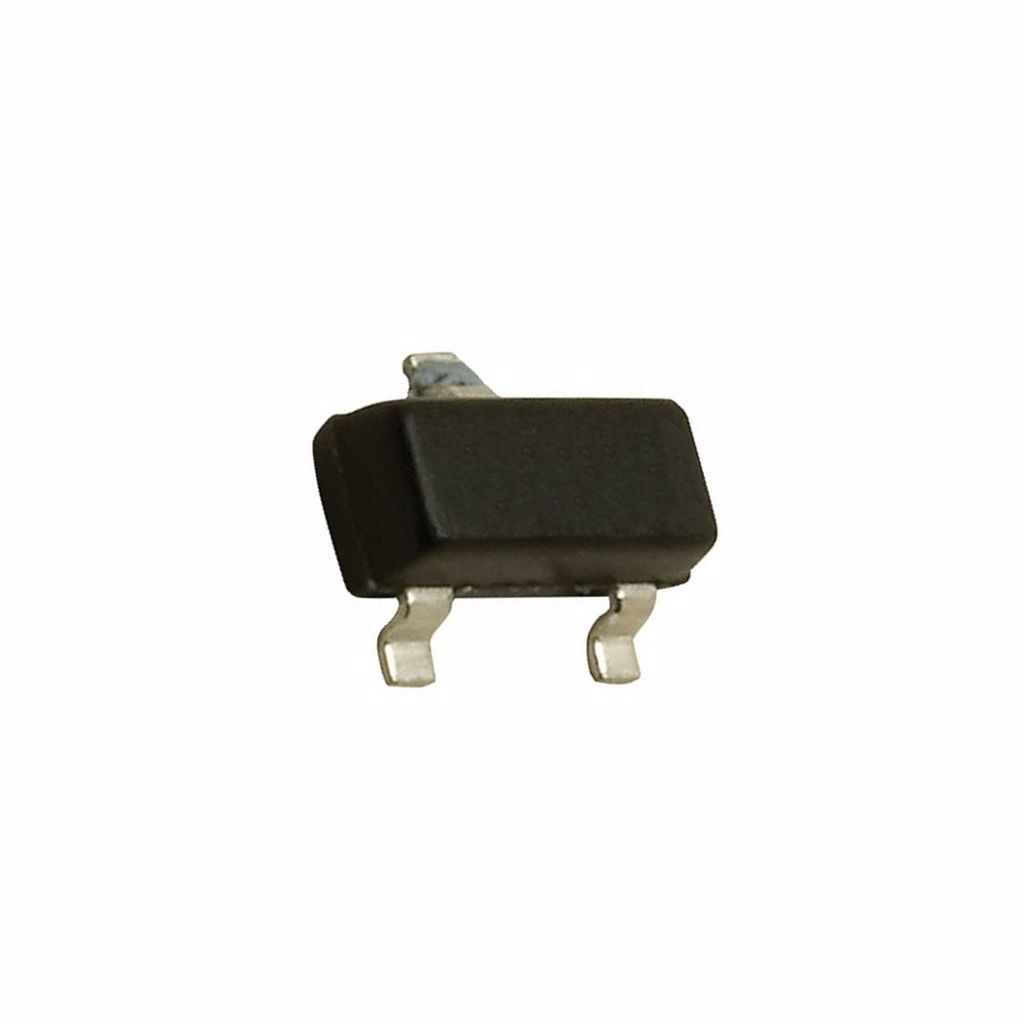

DTA114EKAT146 SOT-23 0.1A 50V 0.2W PNP TRANSISTOR
Kategori
Marka
Fiyat
0,18 USD + KDV
0,65 TL den başlayan taksitlerle!
Kalan Stok : 166
7,02 TL
DTA114EKAT146 SOT-23 0.1A 50V 0.2W PNP TRANSISTOR
DDTA114
Type Designator: DDTA114EKA
SMD Transistor Code: P13
Material of Transistor: Si
Polarity: Pre-Biased-PNP
Built in Bias Resistor R1 = 10 kOhm
Built in Bias Resistor R2 = 10 kOhm
Typical Resistor Ratio R1/R2 = 1
Maximum Collector Power Dissipation (Pc): 0.2 W
Maximum Collector-Emitter Voltage |Vce|: 50 V
Maximum Emitter-Base Voltage |Veb|: 10 V
Maximum Collector Current |Ic max|: 0.1 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 250 MHz
Forward Current Transfer Ratio (hFE), MIN: 68
Package: SC-59
