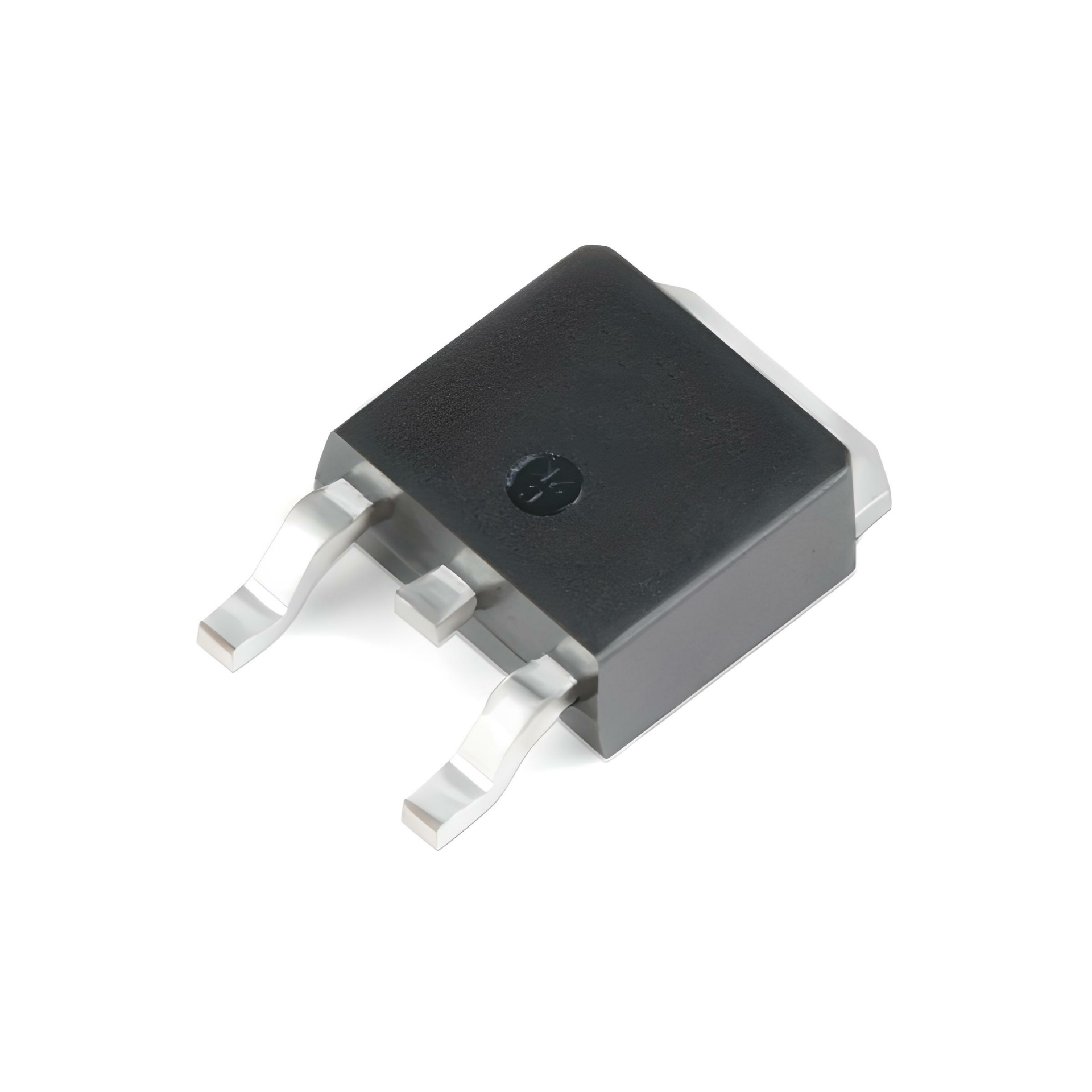

FDD8780 TO-252 35A 25V 50W 8.5mΩ N-CHANNEL MOSFET
₺55,45 + KDV
16 Adet Stokta var, şimdi sipariş ver hemen kargoda
FDD8780 TO-252 35A 25V 50W 8.5mΩ N-CHANNEL MOSFET
FDD8780 MOSFET
Type Designator: FDD8780
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 50 W
Maximum Drain-Source Voltage |Vds|: 25 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 2.5 V
Maximum Drain Current |Id|: 35 A
Maximum Junction Temperature (Tj): 175 °C
Total Gate Charge (Qg): 21 nC
Bu ürüne ilk yorumu siz yapın!
Ürün hakkında henüz soru sorulmamış.
Ürün Bilgisi
FDD8780 TO-252 35A 25V 50W 8.5mΩ N-CHANNEL MOSFET
FDD8780 MOSFET
Type Designator: FDD8780
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 50 W
Maximum Drain-Source Voltage |Vds|: 25 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 2.5 V
Maximum Drain Current |Id|: 35 A
Maximum Junction Temperature (Tj): 175 °C
Total Gate Charge (Qg): 21 nC
