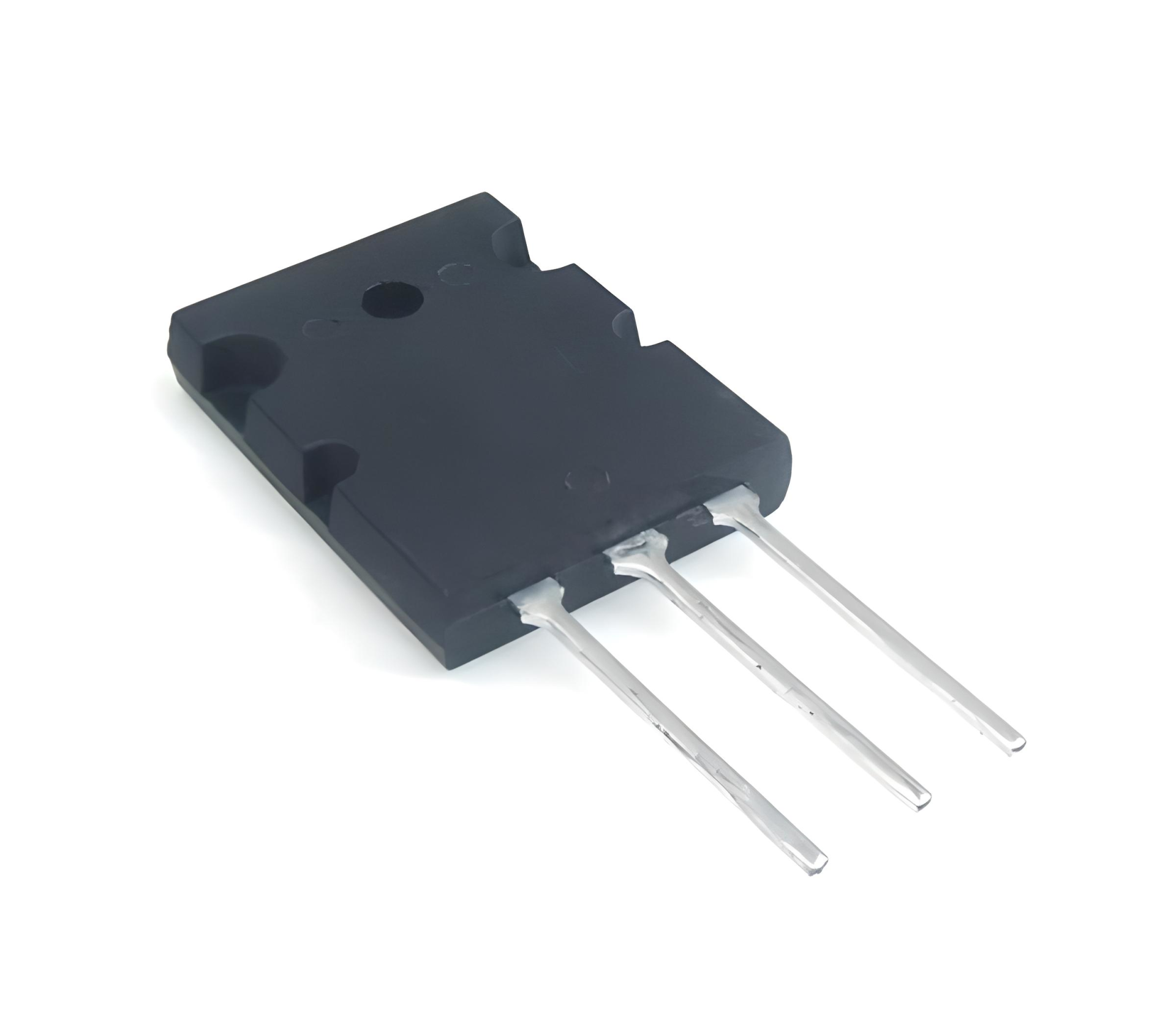

FDL100N50F TO-264 100A 500V 2500W 0.055Ω N-CHANNEL MOSFET
FDL100N50F MOSFET
Type Designator: FDL100N50F
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 2500 W
Maximum Drain-Source Voltage |Vds|: 500 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 5 V
Maximum Drain Current |Id|: 100 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 238 nC
Maximum Drain-Source On-State Resistance (Rds): 0.055 Ohm
Package: TO264
Ürün Bilgisi
FDL100N50F MOSFET
Type Designator: FDL100N50F
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 2500 W
Maximum Drain-Source Voltage |Vds|: 500 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 5 V
Maximum Drain Current |Id|: 100 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 238 nC
Maximum Drain-Source On-State Resistance (Rds): 0.055 Ohm
Package: TO264
