FDS9958 SOP-8 2.9A 60V 2W 105MΩ DUAL P-CHANNEL MOSFET
FDS9958 MOSFET
Type Designator: FDS9958
Type of Transistor: MOSFET
Type of Control Channel: P -Channel
Maximum Power Dissipation (Pd): 2 W
Maximum Drain-Source Voltage |Vds|: 60 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 3 V
Maximum Drain Current |Id|: 2.9 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 16 nC
Rise Time (tr): 3 nS
Drain-Source Capacitance (Cd): 90 pF
Maximum Drain-Source On-State Resistance (Rds): 0.105 Ohm

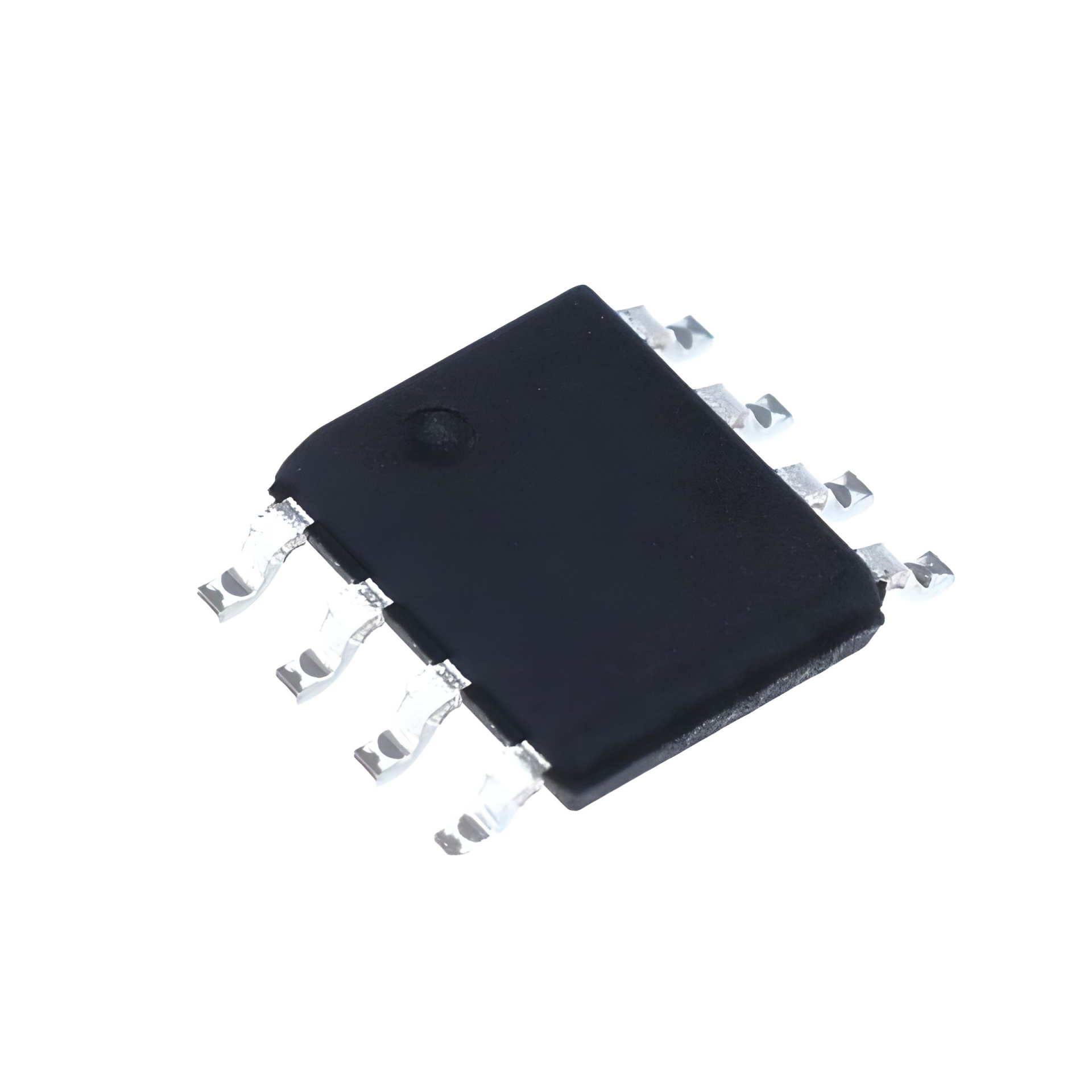

Package: SO-8
Ürün Bilgisi
FDS9958 MOSFET
Type Designator: FDS9958
Type of Transistor: MOSFET
Type of Control Channel: P -Channel
Maximum Power Dissipation (Pd): 2 W
Maximum Drain-Source Voltage |Vds|: 60 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 3 V
Maximum Drain Current |Id|: 2.9 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 16 nC
Rise Time (tr): 3 nS
Drain-Source Capacitance (Cd): 90 pF
Maximum Drain-Source On-State Resistance (Rds): 0.105 Ohm
Package: SO-8
