FGL40N120AND IGBT

Type Designator: FGL40N120AND

Type of IGBT Channel: N

Maximum Power Dissipation (Pc), W: 500

Maximum Collector-Emitter Voltage |Vce|, V: 1200

Collector-Emitter saturation Voltage |Vcesat|, V: 2.6

Maximum Gate-Emitter Voltage |Veg|, V: 25

Maximum Collector Current |Ic|, A: 64

Maximum Junction Temperature (Tj), °C: 150

Rise Time, nS: 20

Maximum Collector Capacity (Cc), pF: 370

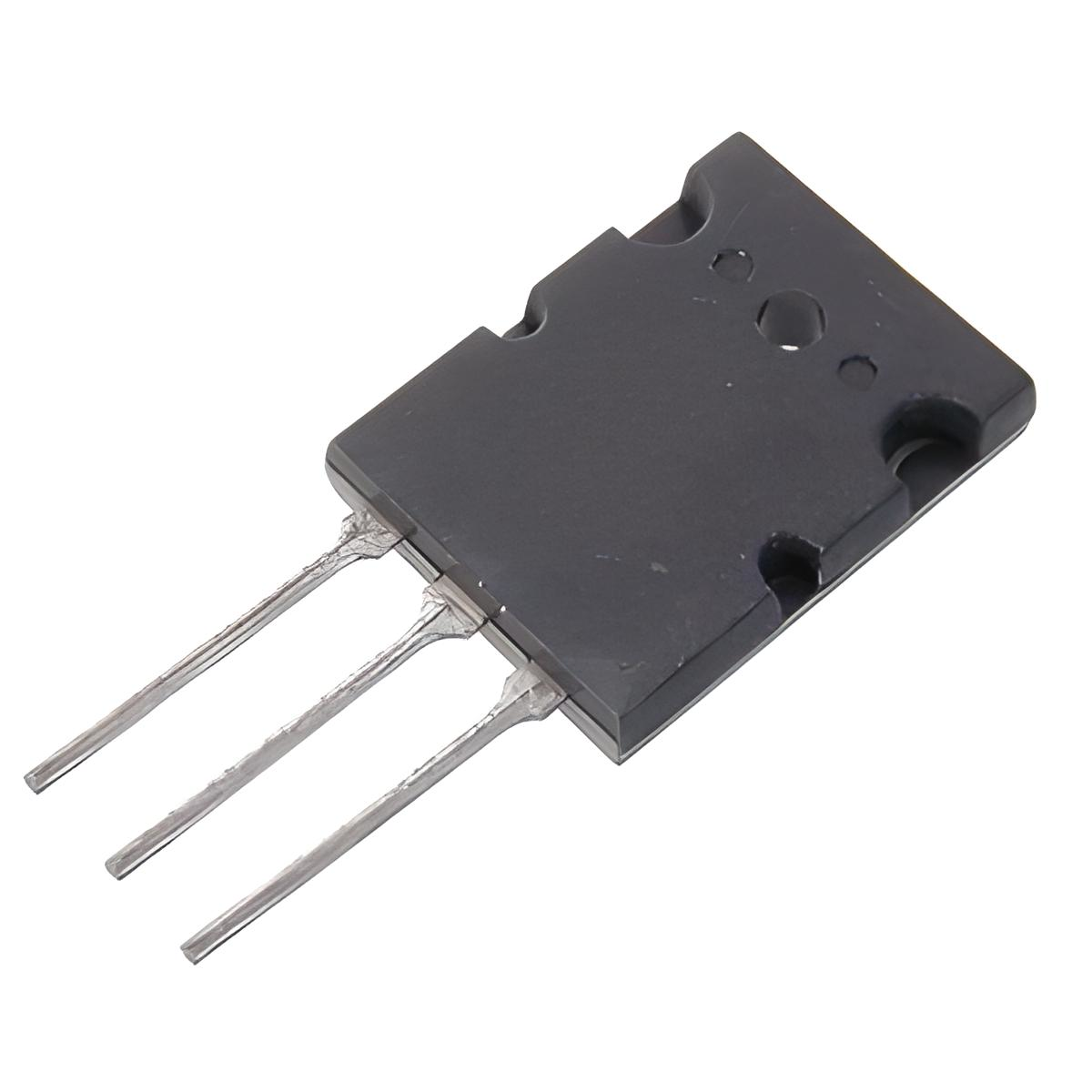

Package: TO264
