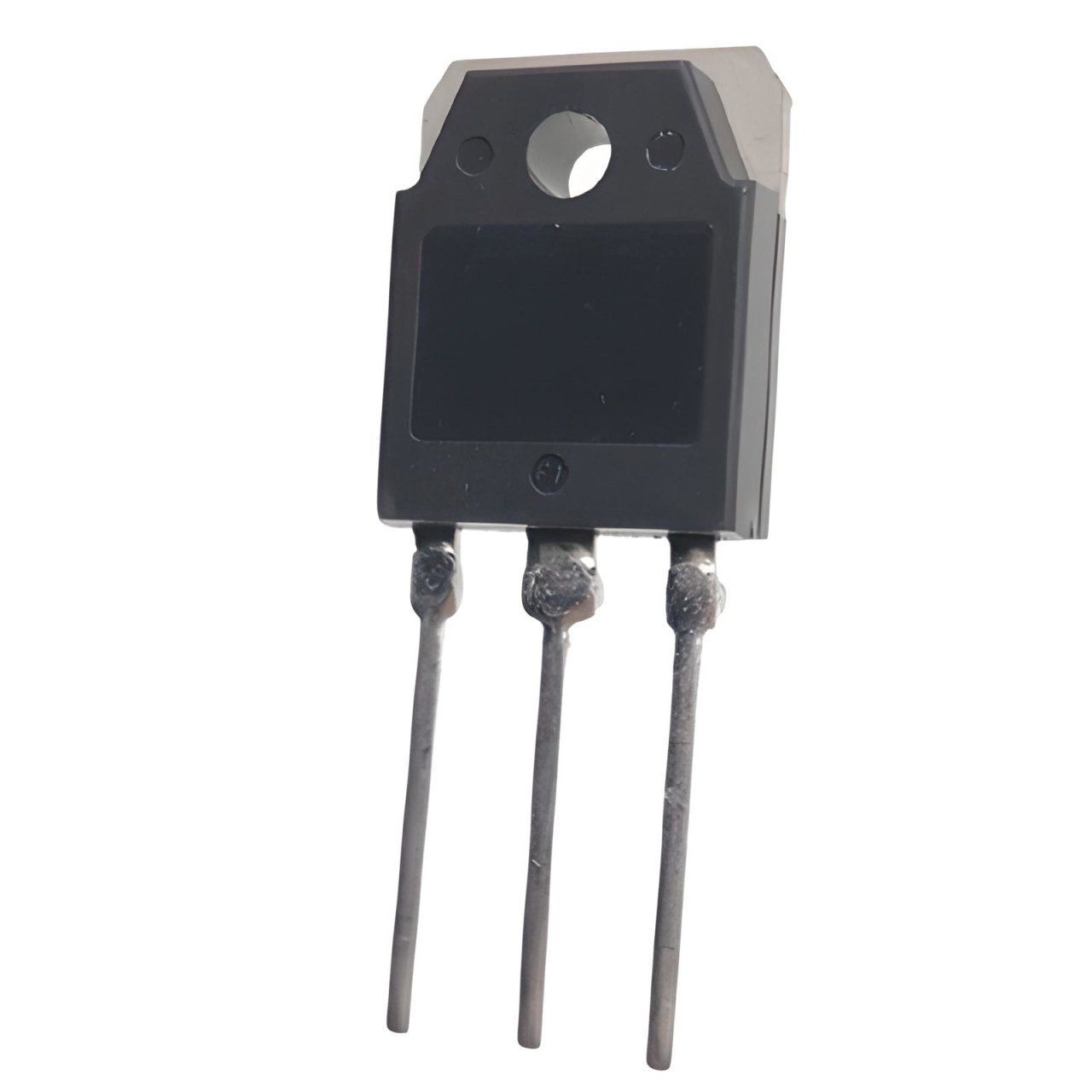

FQA140N10 TO-3PN 100V 140A N-CHANNEL 375W 10M OHM MOSFET
₺569,29 + KDV
10 Adet Stokta var, şimdi sipariş ver hemen kargoda
Kategori
Stok Kodu
TR0257
Fiyat
569,29 TL + KDV
*63,52 TL den başlayan taksitlerle!
FQA140N10 TO-3PN 100V 140A N-CHANNEL 375W 10M OHM MOSFET
Mfr onsemi Series QFET® Packaging Tube Part Status Active FET Type N-Channel Technology MOSFET (Metal Oxide) Drain to Source Voltage (Vdss) 100 V Current - Continuous Drain (Id) @ 25°C 140A (Tc) Drive Voltage (Max Rds On, Min Rds On) 10V Rds On (Max) @ Id, Vgs 10mOhm @ 70A, 10V Vgs(th) (Max) @ Id 4V @ 250µA Gate Charge (Qg) (Max) @ Vgs 285 nC @ 10 V Vgs (Max) ±25V Input Capacitance (Ciss) (Max) @ Vds 7900 pF @ 25 V FET Feature - Power Dissipation (Max) 375W (Tc) Operating Temperature -55°C ~ 175°C (TJ)
Mfr onsemi Series QFET® Packaging Tube Part Status Active FET Type N-Channel Technology MOSFET (Metal Oxide) Drain to Source Voltage (Vdss) 100 V Current - Continuous Drain (Id) @ 25°C 140A (Tc) Drive Voltage (Max Rds On, Min Rds On) 10V Rds On (Max) @ Id, Vgs 10mOhm @ 70A, 10V Vgs(th) (Max) @ Id 4V @ 250µA Gate Charge (Qg) (Max) @ Vgs 285 nC @ 10 V Vgs (Max) ±25V Input Capacitance (Ciss) (Max) @ Vds 7900 pF @ 25 V FET Feature - Power Dissipation (Max) 375W (Tc) Operating Temperature -55°C ~ 175°C (TJ)
Bu ürüne ilk yorumu siz yapın!
Ürün hakkında henüz soru sorulmamış.
Ürün Bilgisi
FQA140N10 TO-3PN 100V 140A N-CHANNEL 375W 10M OHM MOSFET
Mfr onsemi Series QFET® Packaging Tube Part Status Active FET Type N-Channel Technology MOSFET (Metal Oxide) Drain to Source Voltage (Vdss) 100 V Current - Continuous Drain (Id) @ 25°C 140A (Tc) Drive Voltage (Max Rds On, Min Rds On) 10V Rds On (Max) @ Id, Vgs 10mOhm @ 70A, 10V Vgs(th) (Max) @ Id 4V @ 250µA Gate Charge (Qg) (Max) @ Vgs 285 nC @ 10 V Vgs (Max) ±25V Input Capacitance (Ciss) (Max) @ Vds 7900 pF @ 25 V FET Feature - Power Dissipation (Max) 375W (Tc) Operating Temperature -55°C ~ 175°C (TJ)
Mfr onsemi Series QFET® Packaging Tube Part Status Active FET Type N-Channel Technology MOSFET (Metal Oxide) Drain to Source Voltage (Vdss) 100 V Current - Continuous Drain (Id) @ 25°C 140A (Tc) Drive Voltage (Max Rds On, Min Rds On) 10V Rds On (Max) @ Id, Vgs 10mOhm @ 70A, 10V Vgs(th) (Max) @ Id 4V @ 250µA Gate Charge (Qg) (Max) @ Vgs 285 nC @ 10 V Vgs (Max) ±25V Input Capacitance (Ciss) (Max) @ Vds 7900 pF @ 25 V FET Feature - Power Dissipation (Max) 375W (Tc) Operating Temperature -55°C ~ 175°C (TJ)
FQA140N10 TO-3PN 100V 140A N-CHANNEL 375W 10M OHM MOSFET
₺569 + KDV
