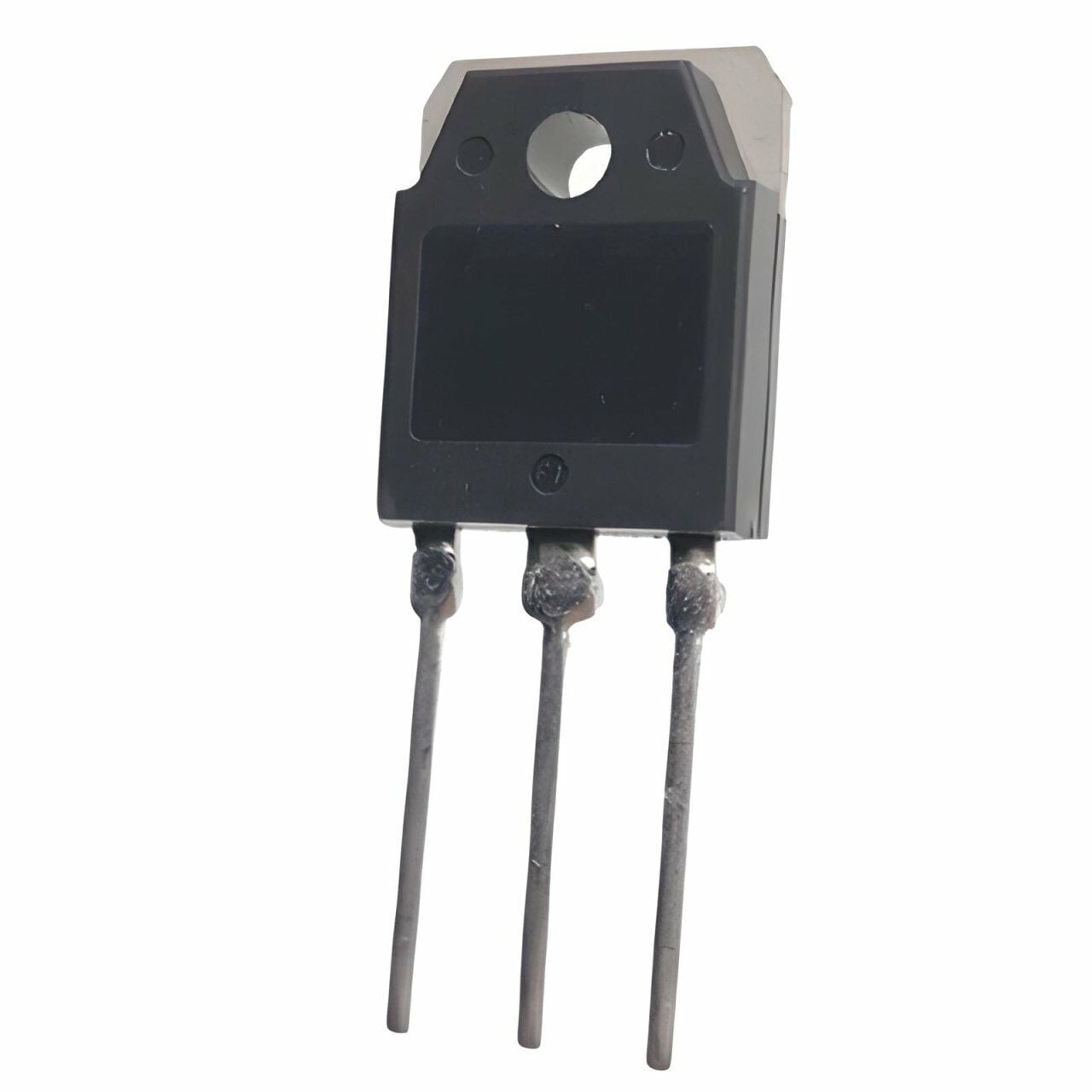

FQA90N15 TO-3P 90A 150V 375W 0.018Ω N-CHANNEL MOSFET
₺337,89 + KDV
30 Adet Stokta var, şimdi sipariş ver hemen kargoda
Kategori
Stok Kodu
TR109015
Fiyat
337,89 TL + KDV
*37,70 TL den başlayan taksitlerle!
FQA90N15 TO-3P 90A 150V 375W 0.018Ω N-CHANNEL MOSFET
Type of Transistor: MOSFET
Type of Control Channel: N-Channel
Absolute Maximum Ratings
Pd ⓘ - Maximum Power Dissipation: 375 W
|Vds|ⓘ - Maximum Drain-Source Voltage: 150 V
|Vgs|ⓘ - Maximum Gate-Source Voltage: 25 V
|Id| ⓘ - Maximum Drain Current: 90 A
Tj ⓘ - Maximum Junction Temperature: 175 °C
Electrical Characteristics
|VGSth|ⓘ - Maximum Gate-Threshold Voltage: 4 V
Qg ⓘ - Total Gate Charge: 220 nC
RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.018 Ohm
Package: TO3PN
Bu ürüne ilk yorumu siz yapın!
Ürün hakkında henüz soru sorulmamış.
Ürün Bilgisi
FQA90N15 TO-3P 90A 150V 375W 0.018Ω N-CHANNEL MOSFET
Type of Transistor: MOSFET
Type of Control Channel: N-Channel
Absolute Maximum Ratings
Pd ⓘ - Maximum Power Dissipation: 375 W
|Vds|ⓘ - Maximum Drain-Source Voltage: 150 V
|Vgs|ⓘ - Maximum Gate-Source Voltage: 25 V
|Id| ⓘ - Maximum Drain Current: 90 A
Tj ⓘ - Maximum Junction Temperature: 175 °C
Electrical Characteristics
|VGSth|ⓘ - Maximum Gate-Threshold Voltage: 4 V
Qg ⓘ - Total Gate Charge: 220 nC
RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.018 Ohm
Package: TO3PN
