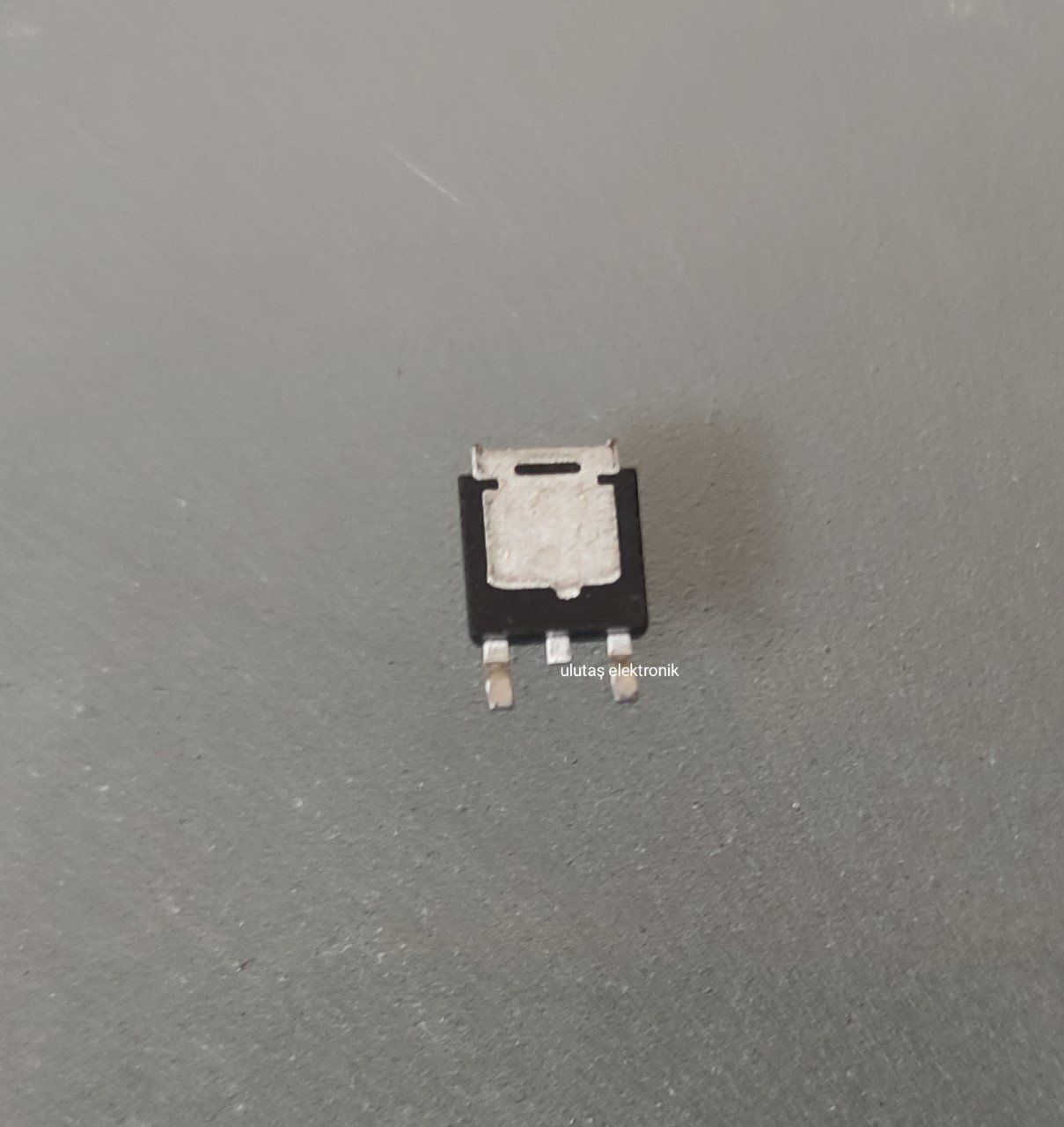

FQD8P10TM TO252 6.6A 100V MOSFET
₺55,97 + KDV
100 Adet Stokta var, şimdi sipariş ver hemen kargoda
Product Attributes
| TYPE | DESCRIPTION | SELECT ALL |
| Categories | Discrete Semiconductor Products | |
|---|---|---|
| Transistors - FETs, MOSFETs - Single | ||
| Manufacturer | ON Semiconductor | |
| Series | QFET® | |
| Packaging | Cut Tape (CT) | |
| Part Status | Active | |
| FET Type | P-Channel | |
| Technology | MOSFET (Metal Oxide) | |
| Drain to Source Voltage (Vdss) | 100V | |
| Current - Continuous Drain (Id) @ 25°C | 6.6A (Tc) | |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | |
| Rds On (Max) @ Id, Vgs | 530mOhm @ 3.3A, 10V | |
| Vgs(th) (Max) @ Id | 4V @ 250µA | |
| Gate Charge (Qg) (Max) @ Vgs | 15nC @ 10V | |
| Vgs (Max) | ±30V | |
| Input Capacitance (Ciss) (Max) @ Vds | 470pF @ 25V | |
| FET Feature | - | |
| Power Dissipation (Max) | 2.5W (Ta), 44W (Tc) | |
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| Mounting Type | Surface Mount | |
| Supplier Device Package | D-Pak | |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 | |
| Base Part Number | FQD8P10 |
