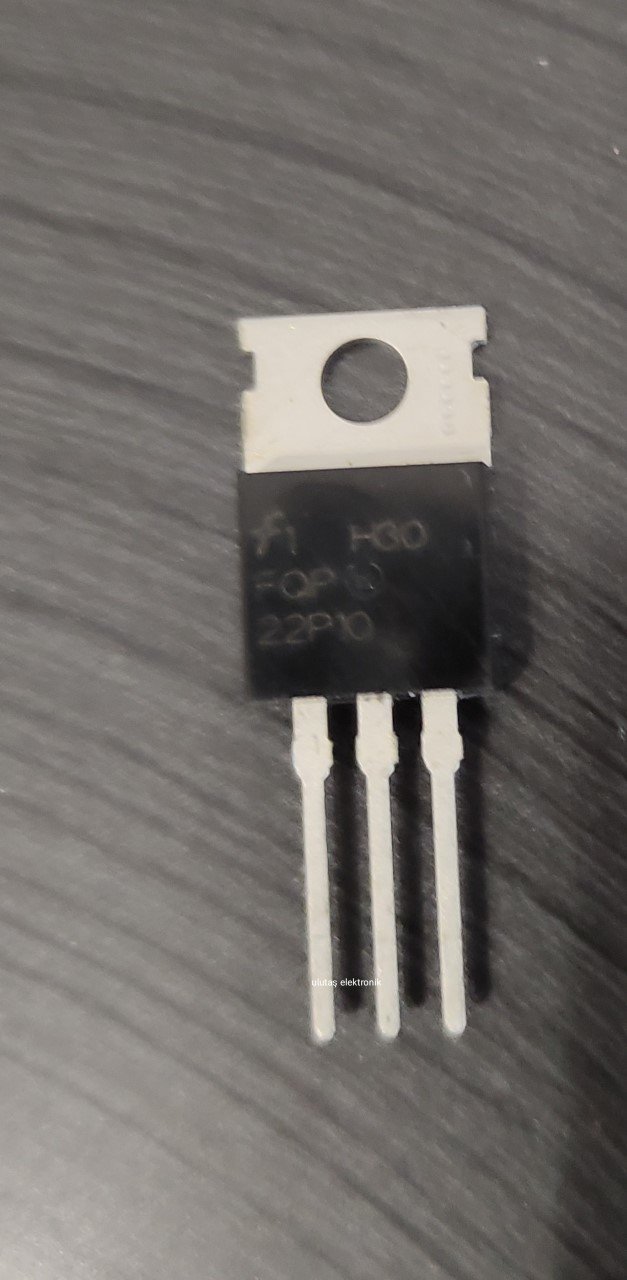

FQP22P10 TO-220 22A 100V MOSFET
₺73,89 + KDV
50 Adet Stokta var, şimdi sipariş ver hemen kargoda
Product Attributes
| TYPE | DESCRIPTION | |
| Categories | Discrete Semiconductor Products | |
|---|---|---|
| Transistors - FETs, MOSFETs - Single | ||
| Manufacturer | ON Semiconductor | |
| Series | QFET® | |
| Packaging | Tube | |
| Part Status | Obsolete | |
| FET Type | P-Channel | |
| Technology | MOSFET (Metal Oxide) | |
| Drain to Source Voltage (Vdss) | 100V | |
| Current - Continuous Drain (Id) @ 25°C | 22A (Tc) | |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | |
| Rds On (Max) @ Id, Vgs | 125mOhm @ 11A, 10V | |
| Vgs(th) (Max) @ Id | 4V @ 250µA | |
| Gate Charge (Qg) (Max) @ Vgs | 50nC @ 10V | |
| Vgs (Max) | ±30V | |
| Input Capacitance (Ciss) (Max) @ Vds | 1500pF @ 25V | |
| FET Feature | - | |
| Power Dissipation (Max) | 125W (Tc) | |
| Operating Temperature | -55°C ~ 175°C (TJ) | |
| Mounting Type | Through Hole | |
| Supplier Device Package | TO-220-3 | |
| Package / Case | TO-220-3 |
Bu ürüne ilk yorumu siz yapın!
Ürün hakkında henüz soru sorulmamış.
Ürün Bilgisi
Product Attributes
| TYPE | DESCRIPTION | |
| Categories | Discrete Semiconductor Products | |
|---|---|---|
| Transistors - FETs, MOSFETs - Single | ||
| Manufacturer | ON Semiconductor | |
| Series | QFET® | |
| Packaging | Tube | |
| Part Status | Obsolete | |
| FET Type | P-Channel | |
| Technology | MOSFET (Metal Oxide) | |
| Drain to Source Voltage (Vdss) | 100V | |
| Current - Continuous Drain (Id) @ 25°C | 22A (Tc) | |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | |
| Rds On (Max) @ Id, Vgs | 125mOhm @ 11A, 10V | |
| Vgs(th) (Max) @ Id | 4V @ 250µA | |
| Gate Charge (Qg) (Max) @ Vgs | 50nC @ 10V | |
| Vgs (Max) | ±30V | |
| Input Capacitance (Ciss) (Max) @ Vds | 1500pF @ 25V | |
| FET Feature | - | |
| Power Dissipation (Max) | 125W (Tc) | |
| Operating Temperature | -55°C ~ 175°C (TJ) | |
| Mounting Type | Through Hole | |
| Supplier Device Package | TO-220-3 | |
| Package / Case | TO-220-3 |
